4 - 196
Chapter 4 Disassembly / Assembly and Adjustments
REP7.3 GEAR P2 (PL7.1.3) and (SCC) DRIVE ASSY PH (PL7.1.4)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).
Cover the drum of the PHD ASSY to avoid exposure to light.
3) Remove the PHD ASSY. (REP4.6)
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
4) Remove the FUSING UNIT. (REP6.1)
5) Remove the COVER ASSY SIDE L AIO. (REP1.9)
6) Remove the CLUTCH ASSY DRV and BEARING REGI. (REP3.1)
When carrying out the work described below, leave the relay connector on the
printer harness side.

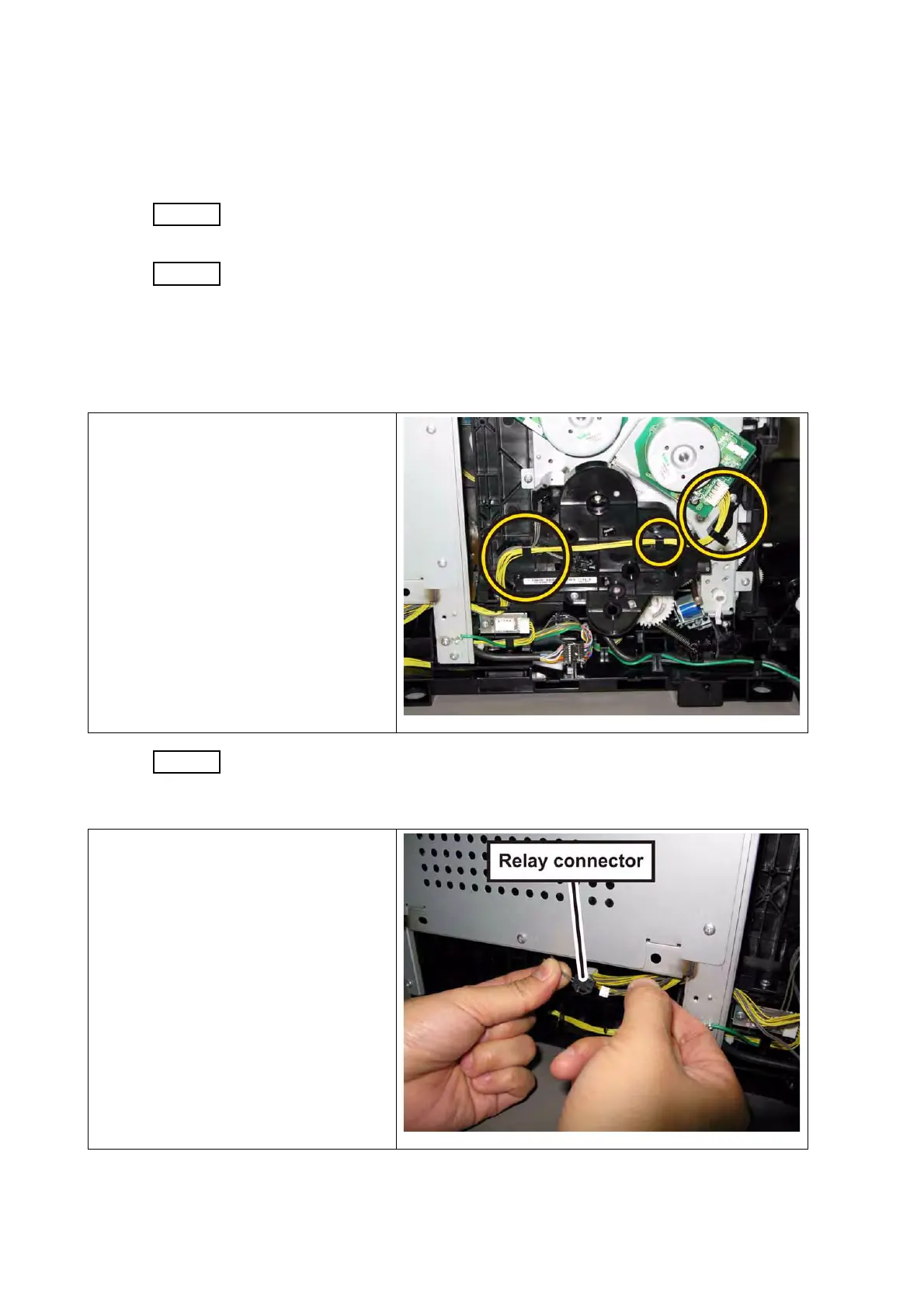

7) Disengage the connector (P/J211) of
the DRIVE ASSY MAIN (PL7.1.2),
release all the harness from the hooks
of the DRIVE ASSY PH.
8) Disengage the connector (P/J241) of
the DRIVE ASSY PH (PL7.1.4).
To Next Page
