10 – 25
Chapter 10 Machine Overview
10.11.2 Auto Document Feeder (ADF)
- Document Sensor
A sensor that detects the presence or absence of a document on the ADF Document Tray.
- Cover Open Sensor
A switch that detects whether or not the ADF Top Cover is open.
- Feed Sensor
The Feed Sensor is installed immediately downstream from the Feed Roll to detect completion of
document feed.
- ADF Motor
The ADF Motor rotates the Nudger Roll, Feed Roll, Takeaway Roll, Regi Roll, and Exit Roll.
-PWBA ADF (Connector PWBA)
A PWB that controls the sensors and motor in the ADF.

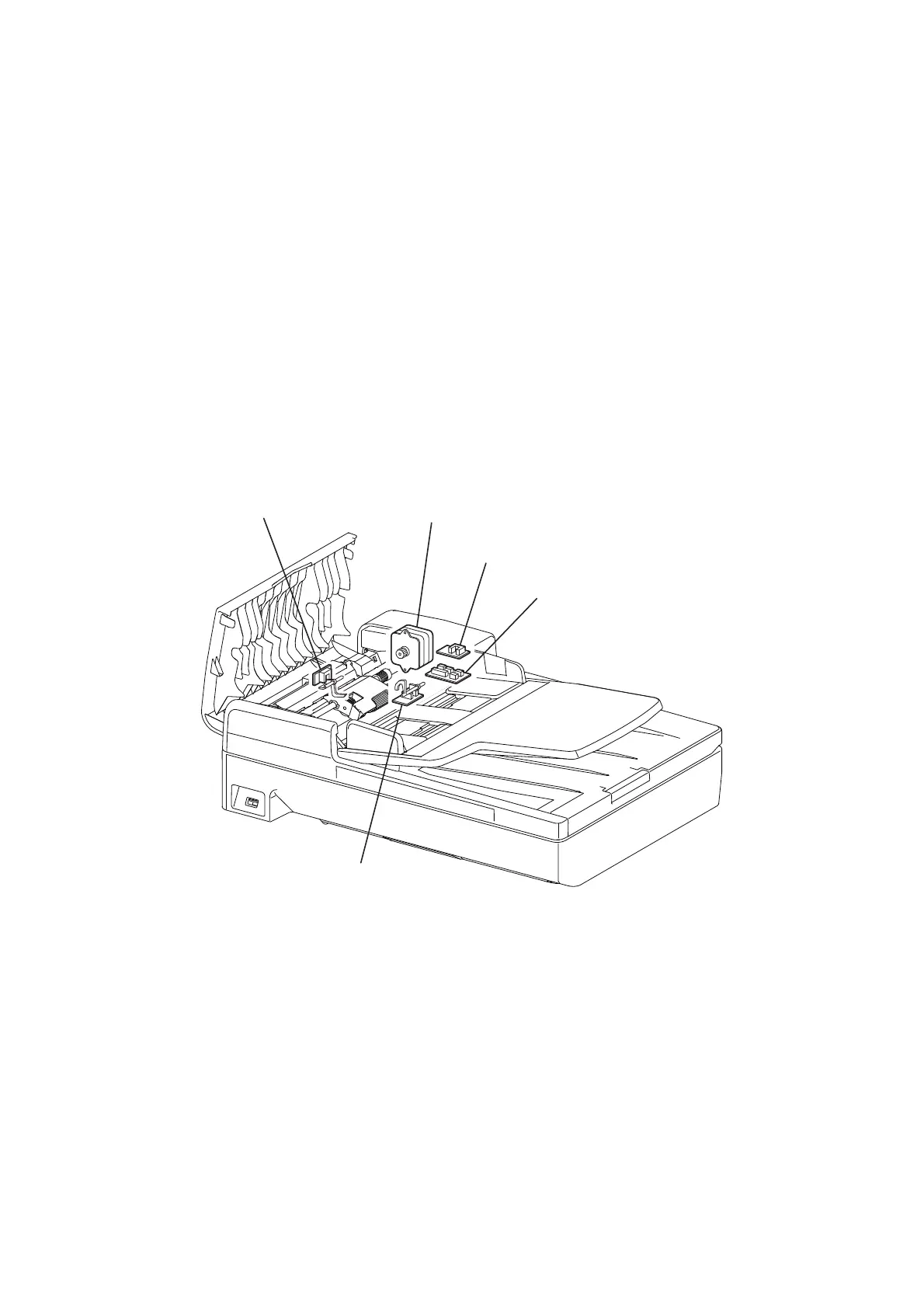

MiA06006GA
ADF Motor
PWBA ADF
Cover Open Sensor
Feed Sensor
Document Sensor
To Next Page
