4 - 220
Chapter 4 Disassembly / Assembly and Adjustments
REP8.5 SHIELD ASSY ESS AIO (PL8.1.7)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).
Cover the drum of the PHD ASSY to avoid exposure to light.
3) Remove the PHD ASSY. (REP4.6)
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
4) Remove the FUSING UNIT. (REP6.1)
5) Remove the COVER ASSY SIDE L AIO. (REP1.9)
6) Remove the COVER POLE OUT AIO. (REP1.1)

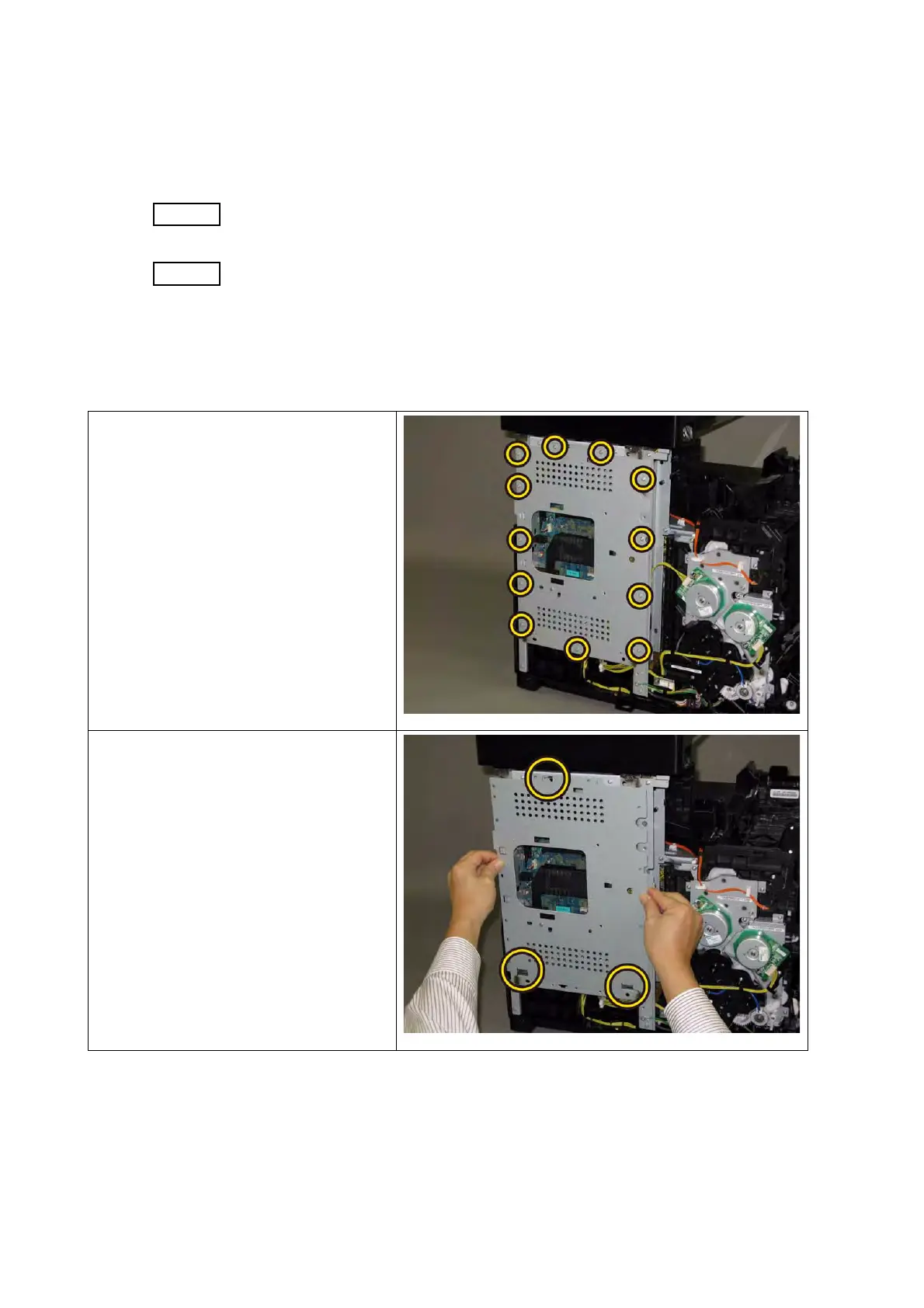

7) Remove the twelve screws (silver,
6mm) that fix the SHIELD ASSY
ESS AIO (PL8.1.7) to the printer.
8) Lift the SHIELD ASSY ESS AIO
slightly up to release the three tabs
of the SHIELD ASSY ESS AIO,
remove the SHIELD ASSY ESS AIO
from the printer.
