Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]

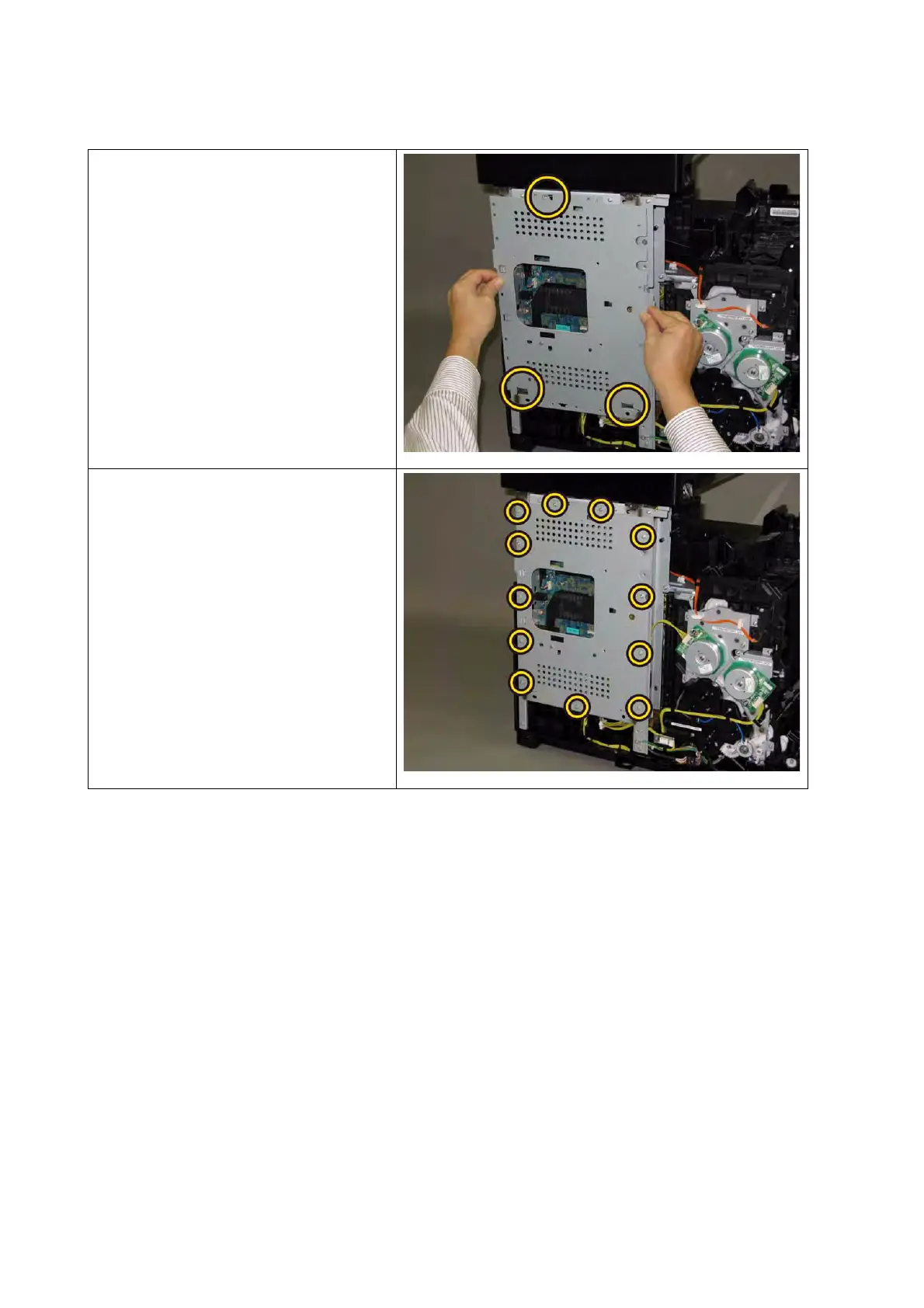

1) Engage the three tabs of the
SHIELD ASSY ESS AIO to the
frame, and then attach the SHIELD
ASSY ESS AIO to the printer.
2) Secure the SHIELD ASSY ESS AIO
to the printer with the twelve
screws (silver, 6mm).
To Next Page
