4 - 6
Chapter 4 Disassembly / Assembly and Adjustments
4.2 Disassembly / Assembly
REP1. COVERS
REP1.1 (SCC) COVER POLE OUT AIO (PL1.1.1)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).
Cover the drum of the PHD ASSY to avoid exposure to light.
3) Remove the PHD ASSY. (REP4.6)
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
4) Remove the FUSING UNIT. (REP6.1)
5) Remove the COVER ASSY SIDE L AIO. (REP1.9)

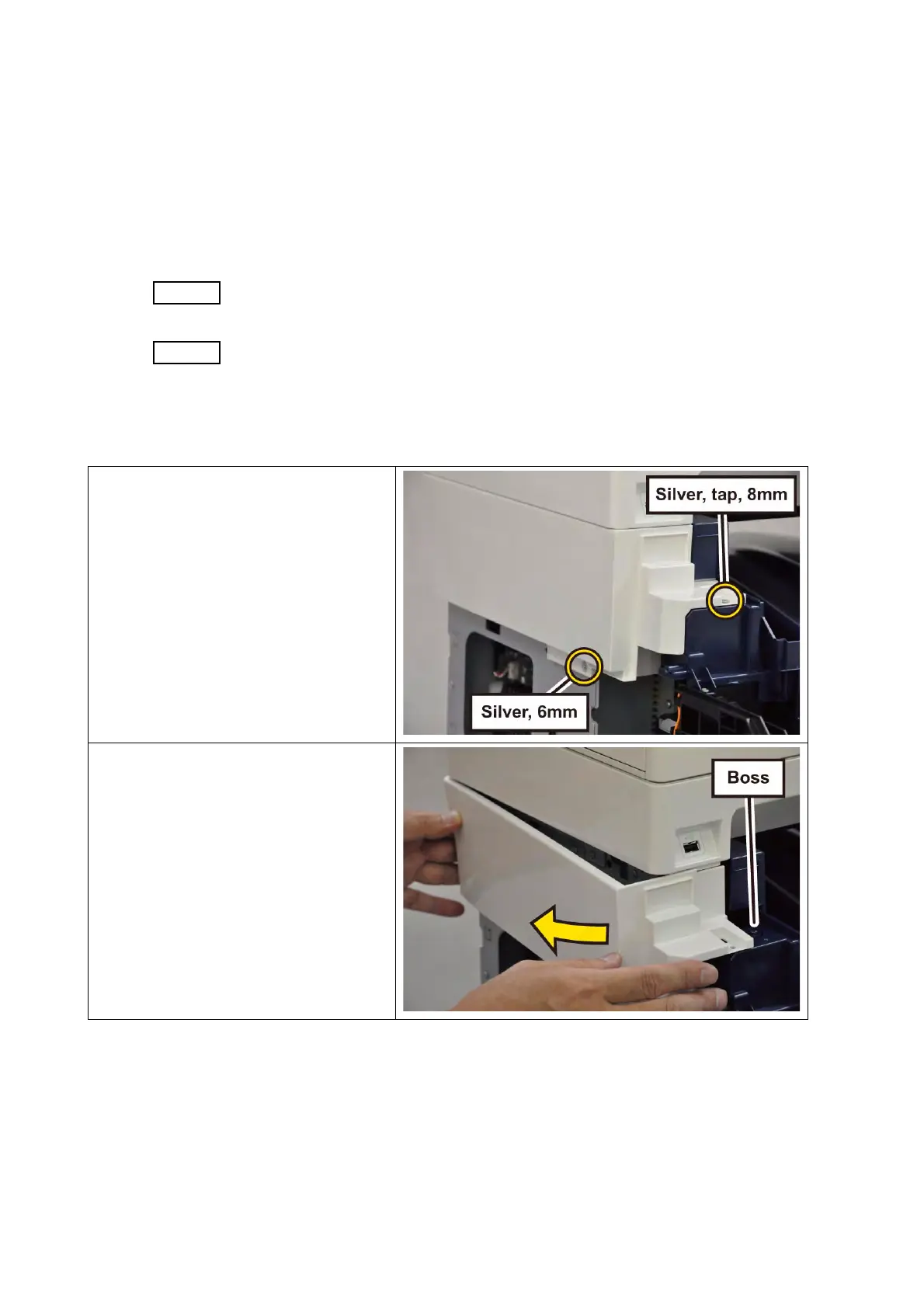

6) Remove the one screw (silver, 6mm)
and the one screw (silver, tap, 8mm)
that fix the COVER POLE OUT AIO
(PL1.1.1) to the printer.
7) Push the boss of the COVER TOP
AIO (PL1.1.4) using the screw-
driver, remove the front side of the
COVER POLE OUT AIO.
To Next Page
