Chapter 10 Machine Overview
10.11 Functions of Major Functional Components
The sections below describe the functions of main components of the scanner.
Refer to "DocuPrint CM305 df" for the function of Major Functional Component of Printer.
10.11.1 Image Input Terminal (IIT)
10.11.2 Auto Document Feeder (ADF)
10.11.1 Image Input Terminal (IIT)
- Carriage Motor (Scanner Motor)
A stepping motor that drives the Scanner ASSY.
- Scanner Home Position Sensor (CVT Position)
A part of the rear section of the Scanner ASSY frame functions as an actuator Scanner Home Position
Sensor, thus detecting the Regi position.
- Exposure Lamp (Cold cathode fluorescent lamp)
The lamp that exposes the document.
- CCD Image Sensor (PWBA CCD)
A CCD image sensor that converts optical images into electrical signals.

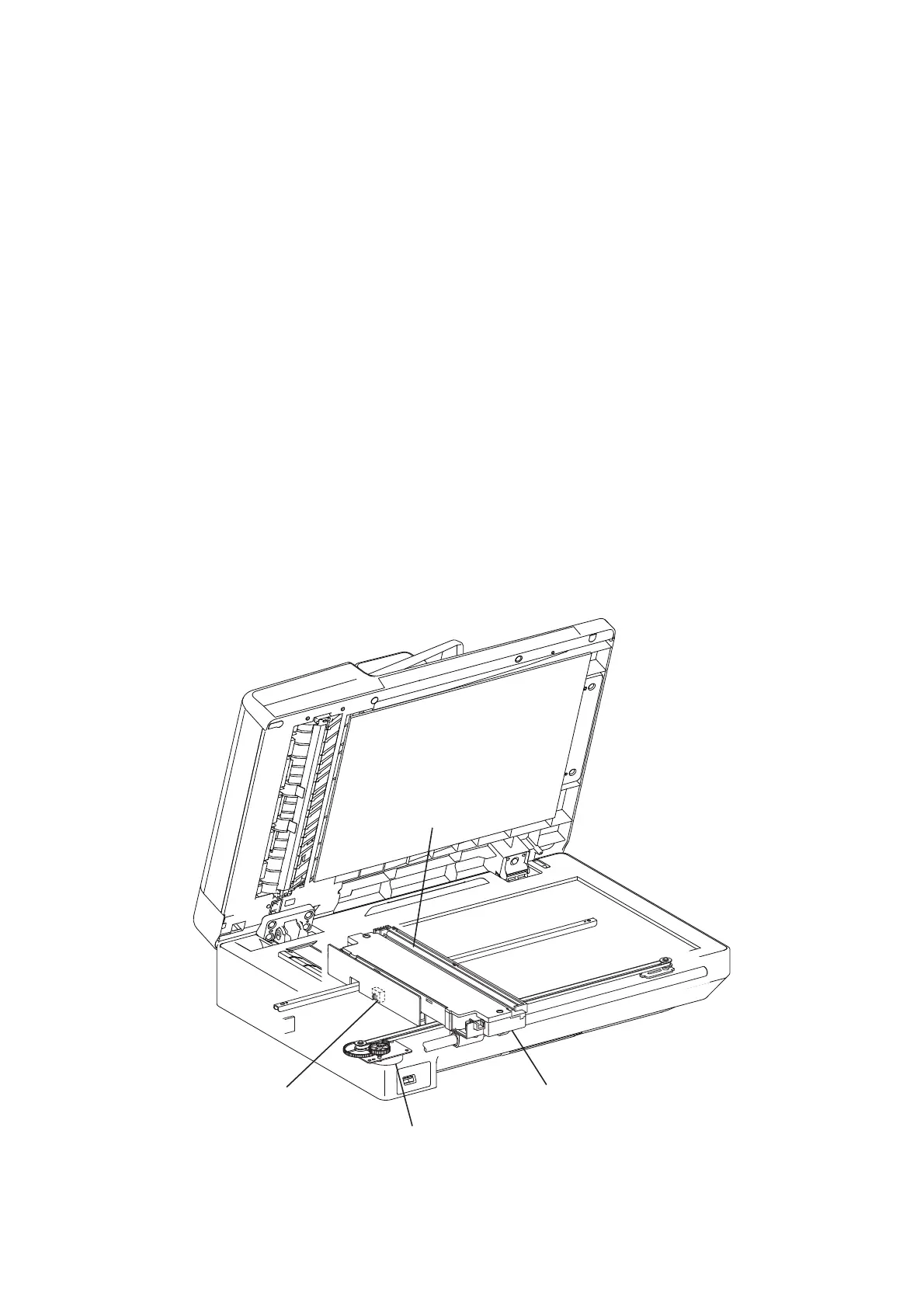

MiA06201GA
Scanner Home
Position Sensor
FB Motor
Exposure Lamp
Carriage Assy
