Fuji Xerox DocuPrint CM305 df Service Manual

4 - 306
Chapter 4 Disassembly / Assembly and Adjustments
REP11.2 ROLL ASSY FEED (Parts of the FEEDER ASSY OPT) (PL12.4.4)
[Removal]
1) Remove the CASSETTE ASSY 250 OPT MG AIO.

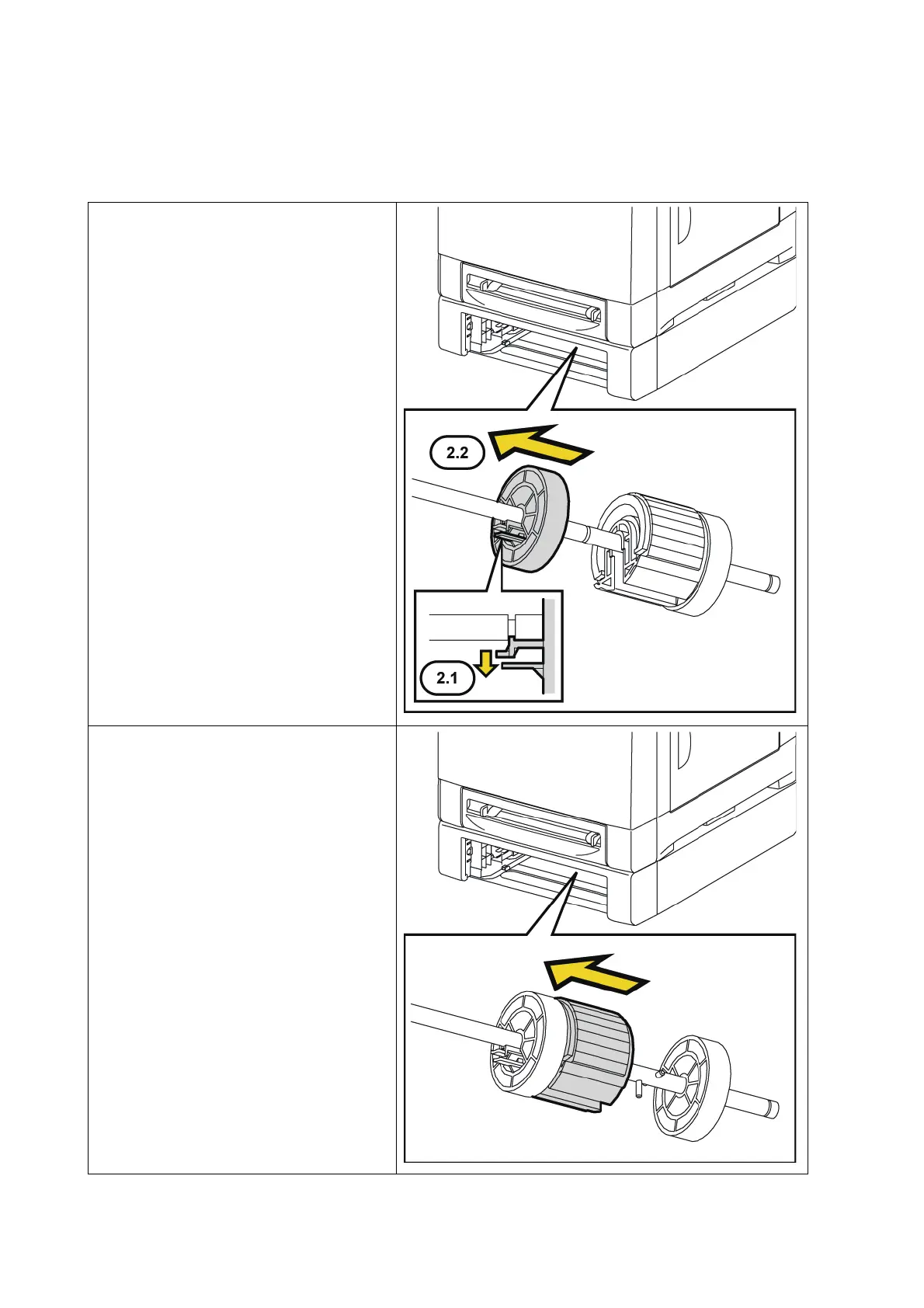

2) Release the hook of the ROLL CORE
MSI (PL12.4.3) on the left of the
ROLL ASSY FEED (PL 12.4.4), and
move the ROLL CORE MSI to left
until it stops.
3) Release the groove on the ROLL
ASSY FEED from the vertical pin
mounted on the SHAFT ASSY
FEED (PL12.4.2) by sliding the
ROLL ASSY FEED to the left.
