Chapter 4 Disassembly / Assembly and Adjustments
REP4.4 LED ASSY ERASE (PL4.1.8)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).
Cover the drum of the PHD ASSY to avoid exposure to light.
3) Remove the PHD ASSY. (REP4.6)
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
4) Remove the FUSING UNIT. (REP6.1)
5) Remove the COVER ASSY SIDE R AIO. (REP1.8)

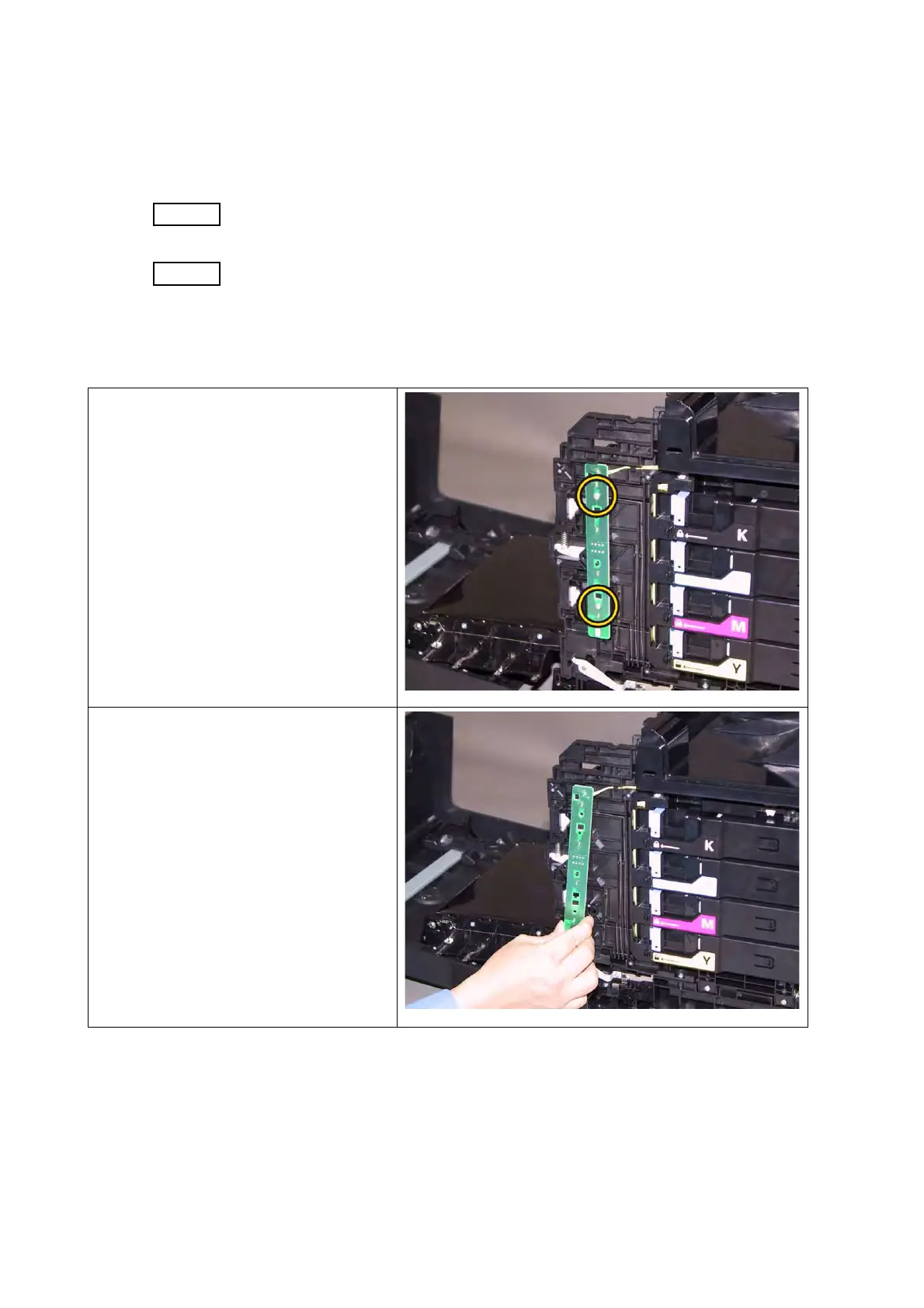

6) Remove the two screws (silver, tap,
8mm) that fix the LED ASSY
ERASE (PL4.1.8) to the printer.
7) Remove the LED ASSY ERASE from
the printer.
