4 - 264
Chapter 4 Disassembly / Assembly and Adjustments
REP9.2 ROLL ASSY FEED (PL10.1.5), PAD ASSY SEPARATOR (PL10.1.6)
[Removal]

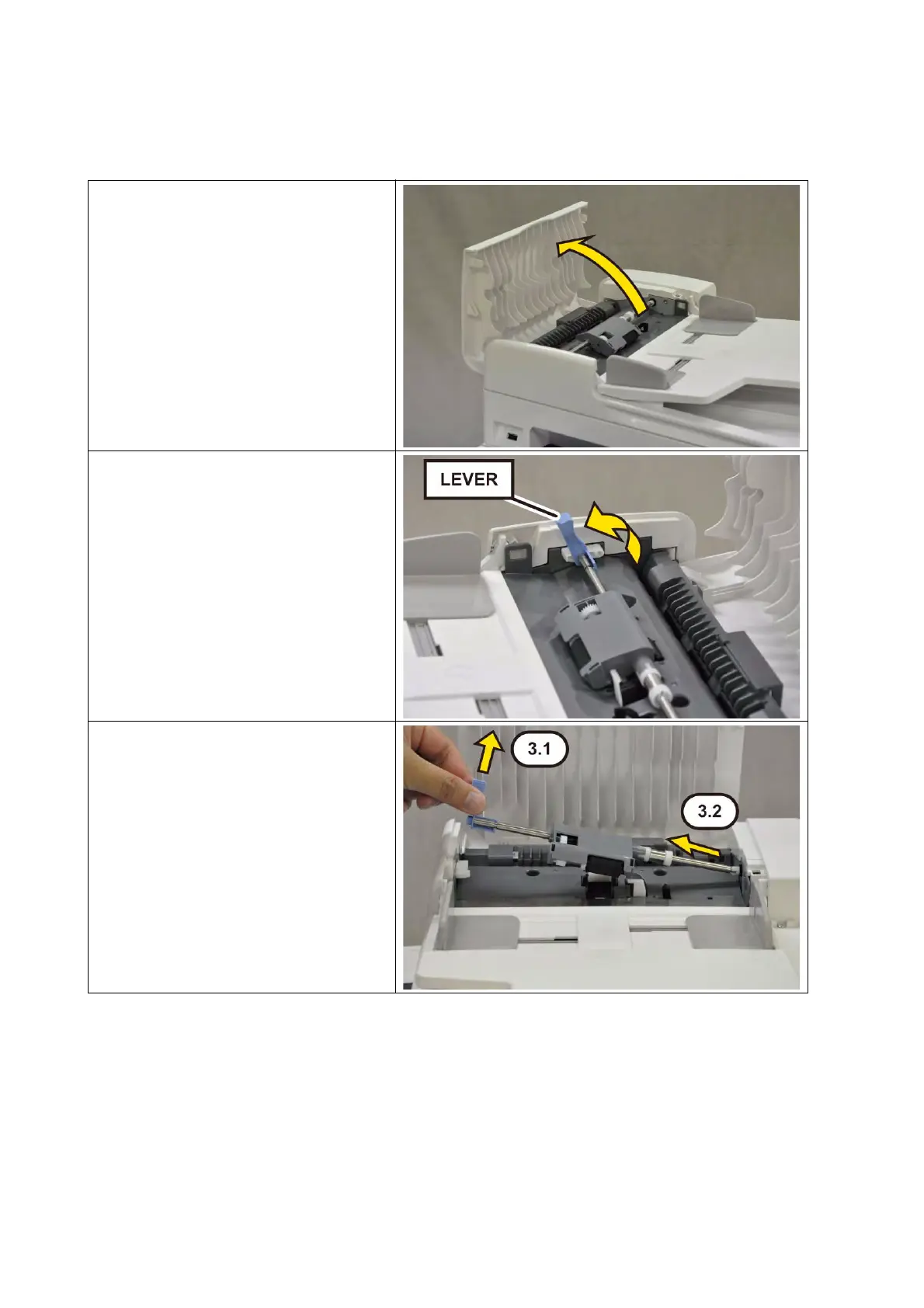

1) Open the COVER TOP ADF
(PL10.1.4).
2) Raise the LEVER of the ROLL
ASSY FEED (PL10.1.5) by 90
degrees.
3) After removing the lever of the
ROLL ASSY FEED from the guide,
pull the rear shaft out. Remove the
ROLL ASSY FEED.
