4 - 263
Chapter 4 Disassembly / Assembly and Adjustments

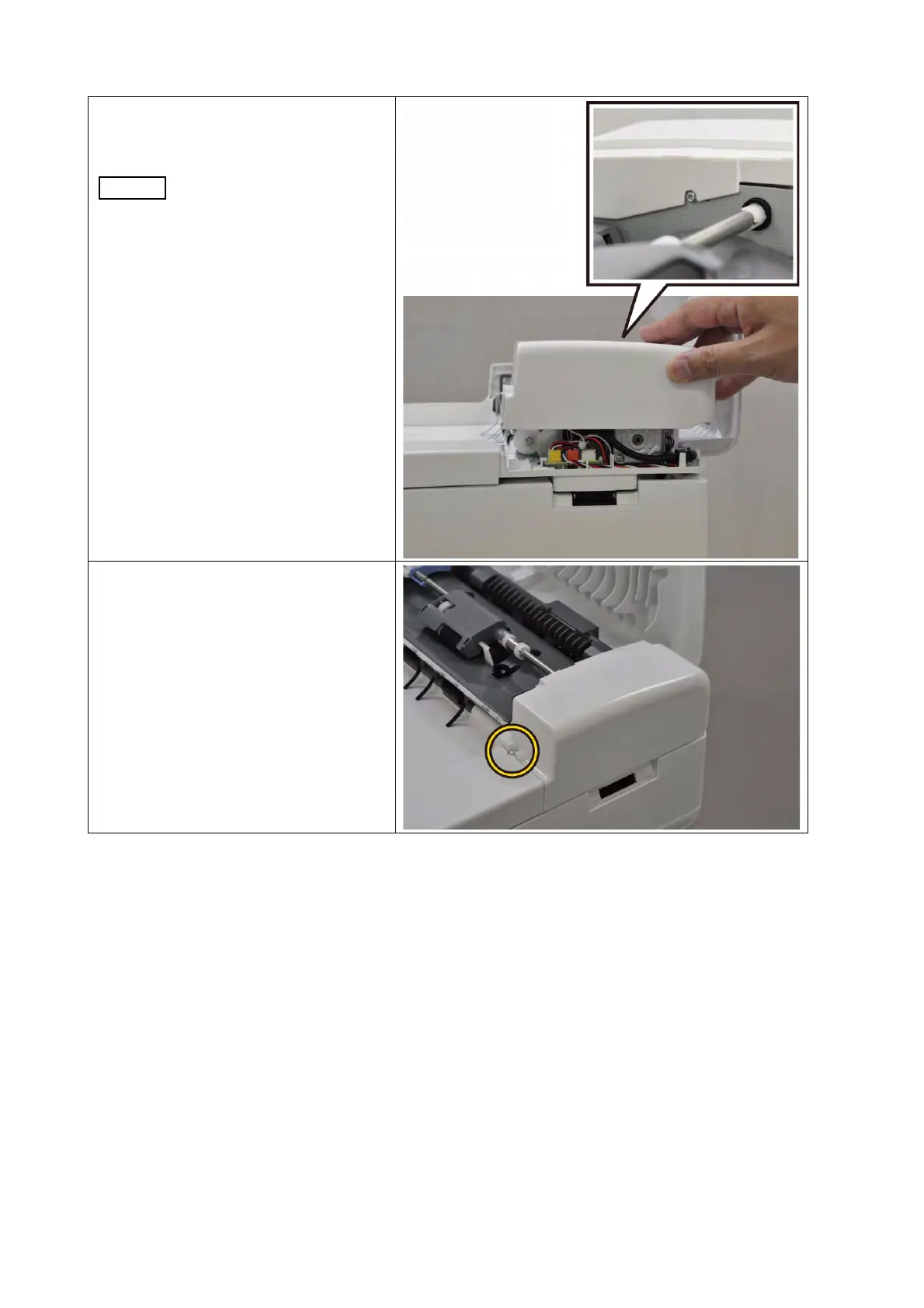

7) Install the COVER ADF REAR to
the ADF ASSY by locking the two
hooks in place.
NOTE
When performing this step,
ensure that the notch on
the front side of the COVER
ADF REAR is aligned with
the screw hole.
8) Secure the COVER ADF REAR to
the ADF ASSY with the one screw
(silver, tap, 8mm).
