Fuji Xerox DocuPrint CM305 df Service Manual

4 - 56
Chapter 4 Disassembly / Assembly and Adjustments

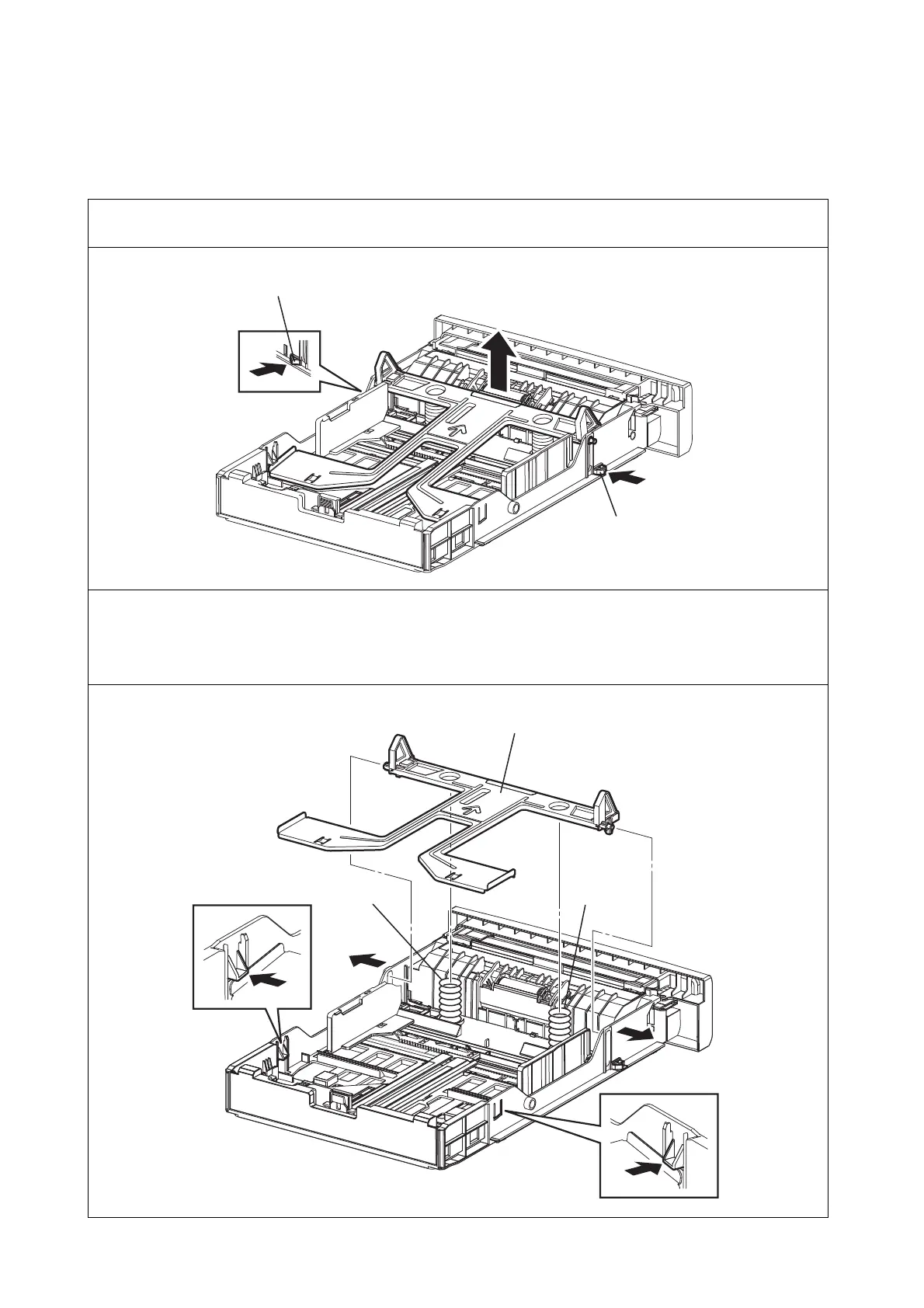

REP2.3 PLATE ASSY BOTTOM (PL2.1.2)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Push the LATCH BOTTOM L (PL2.1.14) and the LATCH BOTTOM R (PL2.1.15), lift the PLATE
ASSY BOTTOM (PL2.1.2) up.
3) Release the left and right bosses of the PLATE ASSY BOTTOM by pressing the left and right of
the HOUSING CST 250 (PL2.1.18) to outside direction.
4) Push the left and right hooks of the HOUSING CST 250 to release the PLATE ASSY BOTTOM,
remove the PLATE ASSY BOTTOM from the CASSETTE ASSY 250 MG AIO (PL2.1.1).
LATCH BOTTOM L
LATCH BOTTOM R
PLATE ASSY BOTTOM
SPRING N/F LSPRING N/F R
