Fuji Xerox DocuPrint CM305 df - Rep1.13 Strap Assy Aio (Pl1.2.30)

4 - 50
Chapter 4 Disassembly / Assembly and Adjustments
REP1.13 STRAP ASSY AIO (PL1.2.30)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).
NOTE
Cover the drum of the PHD ASSY to avoid exposure to light.
3) Remove the PHD ASSY. (REP4.6)
NOTE
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
4) Remove the FUSING UNIT. (REP6.1)
5) Remove the COVER ASSY SIDE R AIO. (REP1.8)

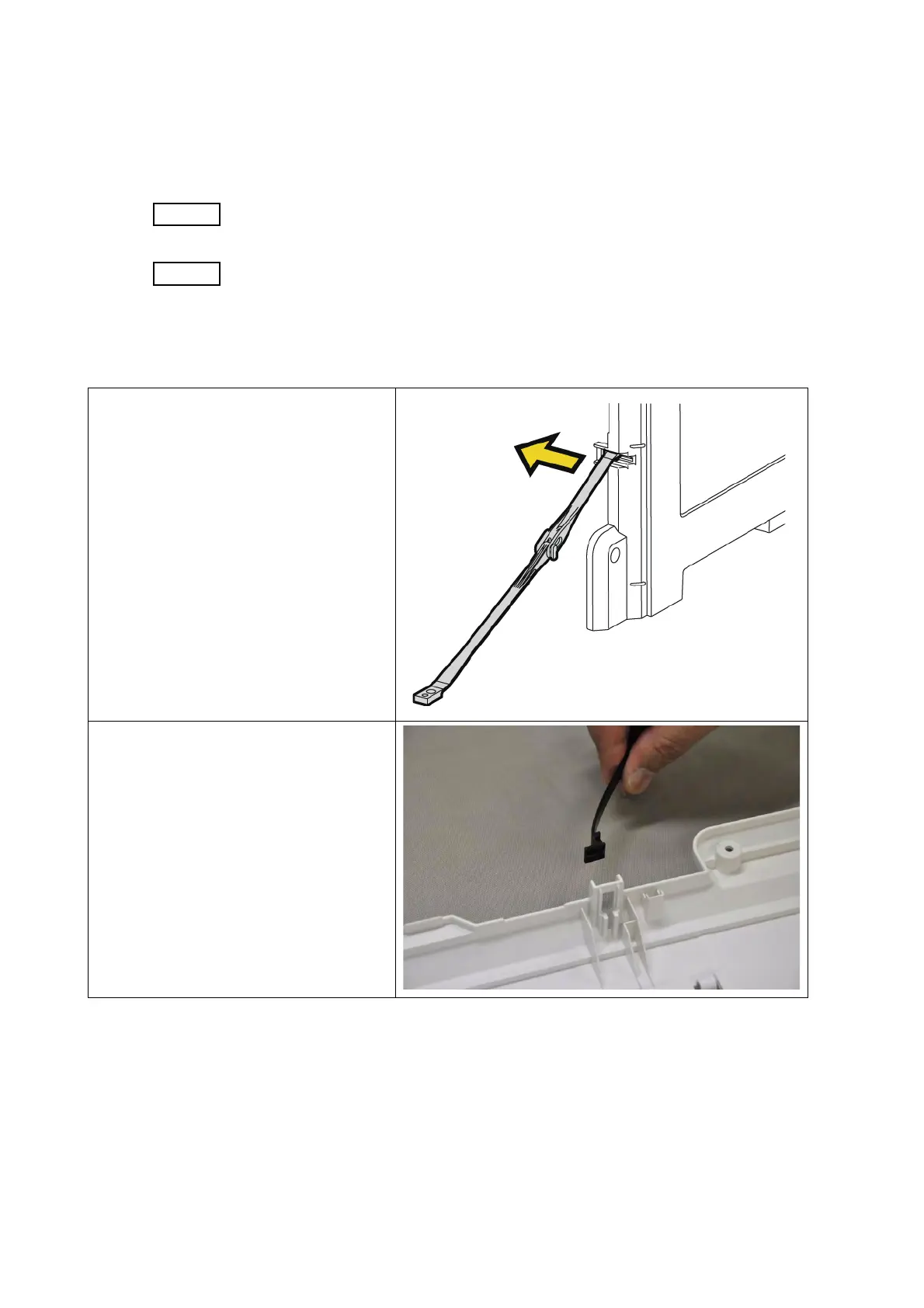

6) Shift the STRAP ASSY AIO
(PL1.2.30), release the hook of the
STRAP ASSY AIO from the COVER
ASSY SIDE R AIO.
7) Remove the STRAP ASSY AIO from
the COVER ASSY SIDE R AIO.
