4 - 51
Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]

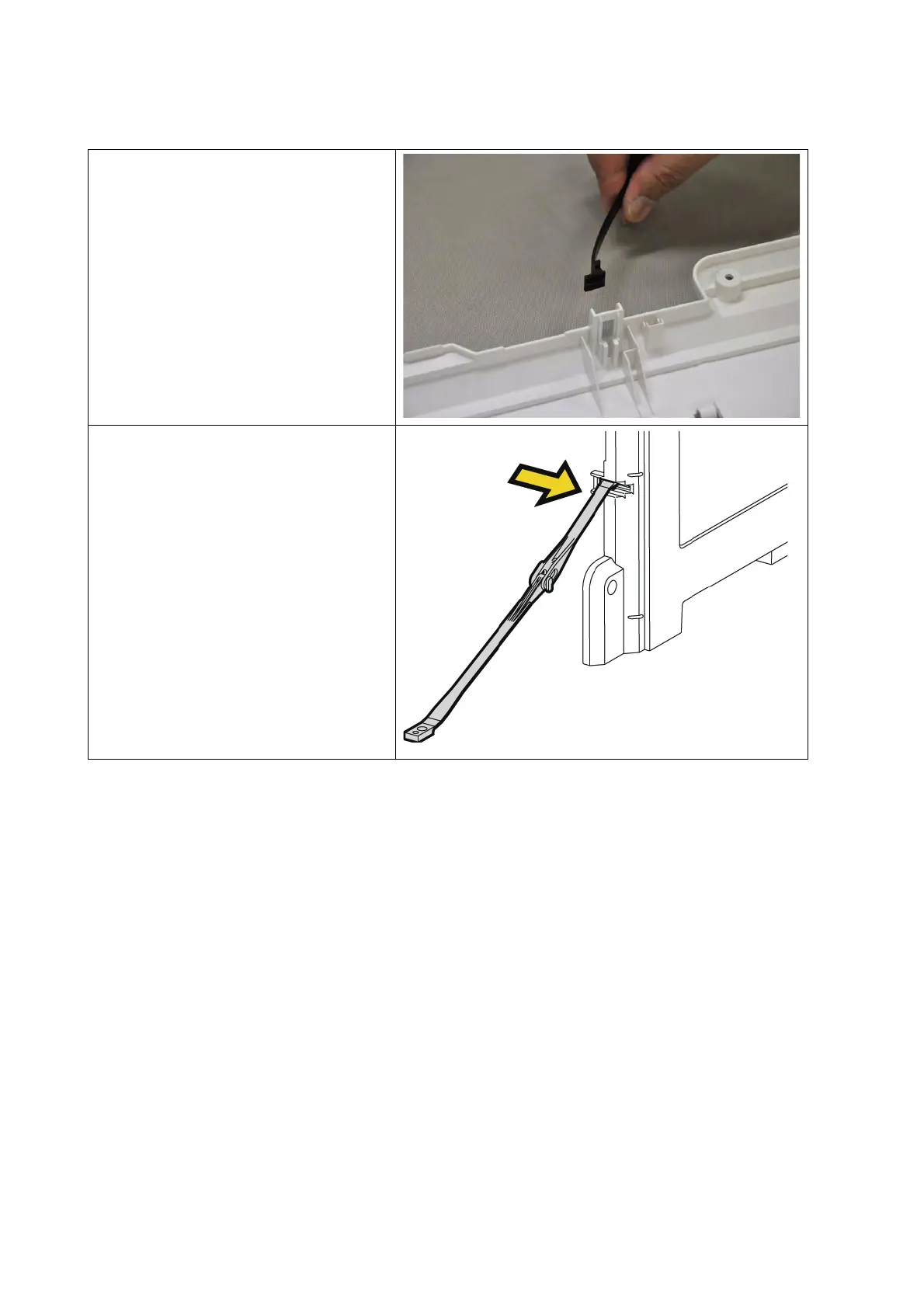

1) Insert the hook of the STRAP ASSY
AIO to the hole of the COVER ASSY
SIDE R AIO.
2) Shift the STRAP ASSY AIO to right
side, secure the STRAP ASSY AIO.
