4 - 54
Chapter 4 Disassembly / Assembly and Adjustments
REP2.2 HOLDER ASSY SEPARATOR (PL2.1.5)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)

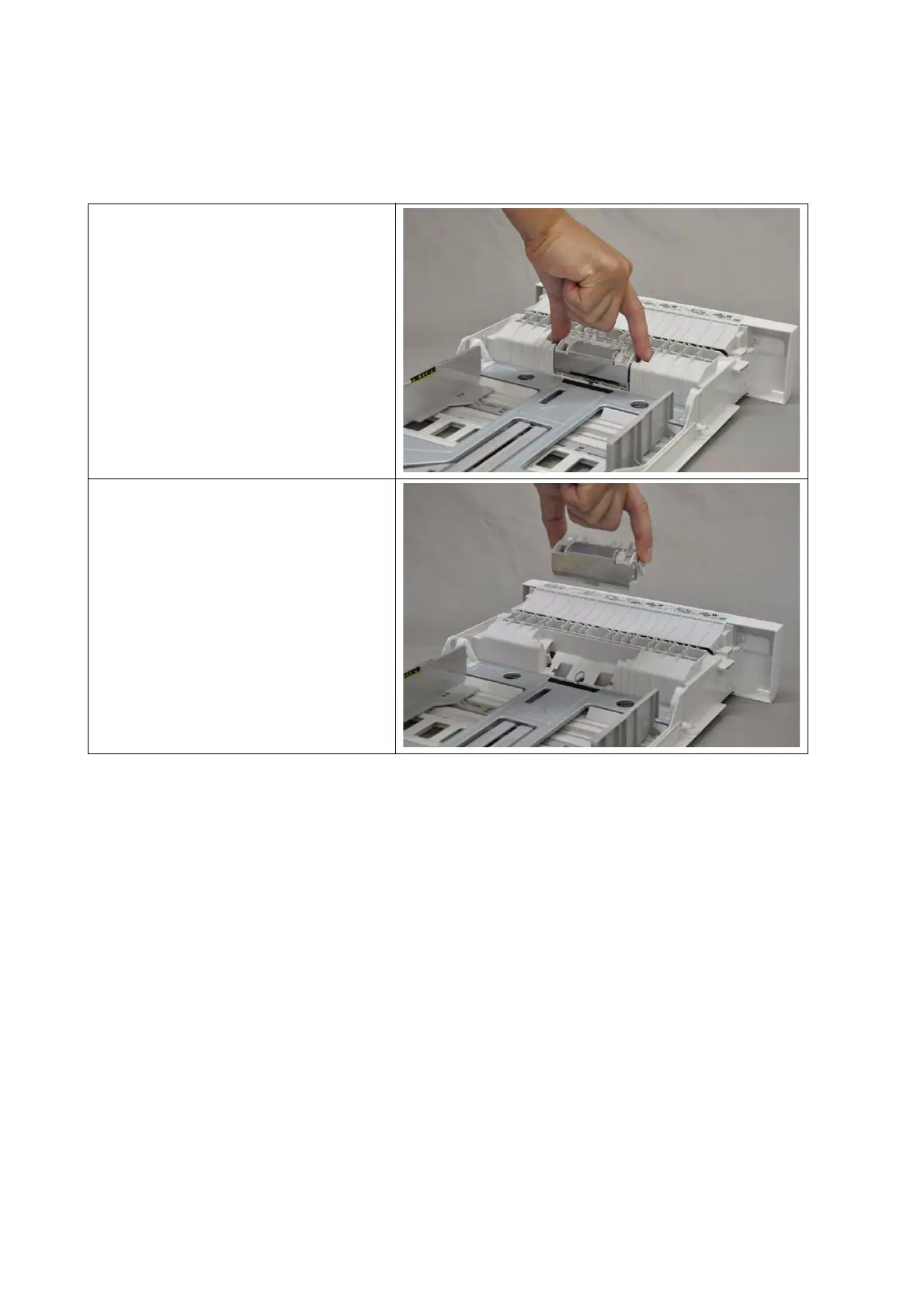

2) Release the two hooks of the
HOLDER ASSY SEPARATOR
(PL2.1.5).
3) Pull up the HOLDER ASSY SEPA-
RATOR to remove the HOLDER
ASSY SEPARATOR from the CAS-
SETTE ASSY 250 MG AIO
(PL2.1.1).
