Chapter 3 Image Quality Troubleshooting

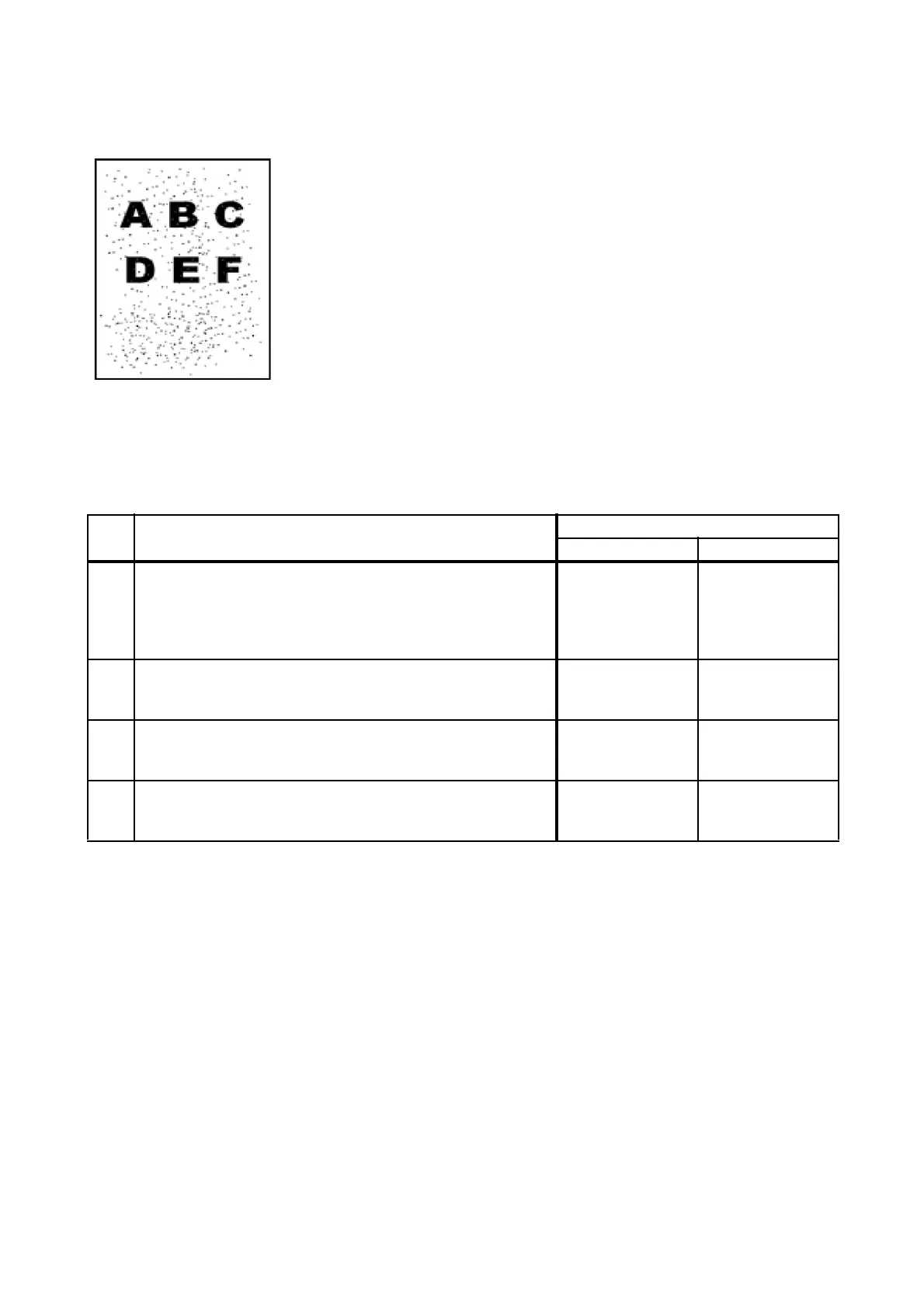

FIP-1.P12 Bead-Carry-Out (BCO)
ESS and possible causative parts
- PWBA HVPS (PL4.1.19)
- PHD ASSY (PL4.1.21)
Before commencing troubleshooting, check the paper transfer path. Make sure there is no foreign
materials on the transfer path, such as staples, paper clips, scraps of paper and so on.
Step Check
Remedy
Yes No
1
Setting the altitude.
Set the altitude.
- To set the altitude, use [Adjust Altitude] on the Printer
Maintenance tab of Tool Box.
Is the image printed correctly?
End of work. Go to step 2.
2
Checking after resetting the PHD ASSY.
Reseat the PHD ASSY.
Is the image printed correctly?
End of work. Go to step 3.
3
Checking after resetting the PWBA HVPS.
Reseat the PWBA HVPS.
Is the image printed correctly?
End of work. Go to step 4.
4
Checking after replacing the PHD ASSY.
Replace the PHD ASSY. (Refer to REP4.6.)
Is the image printed correctly?
End of work.
Replace the
PWBA HVPS.
(Refer to REP4.5.)
To Next Page
