Fuji Xerox DocuPrint CM305 df Service Manual

4 - 243
Chapter 4 Disassembly / Assembly and Adjustments

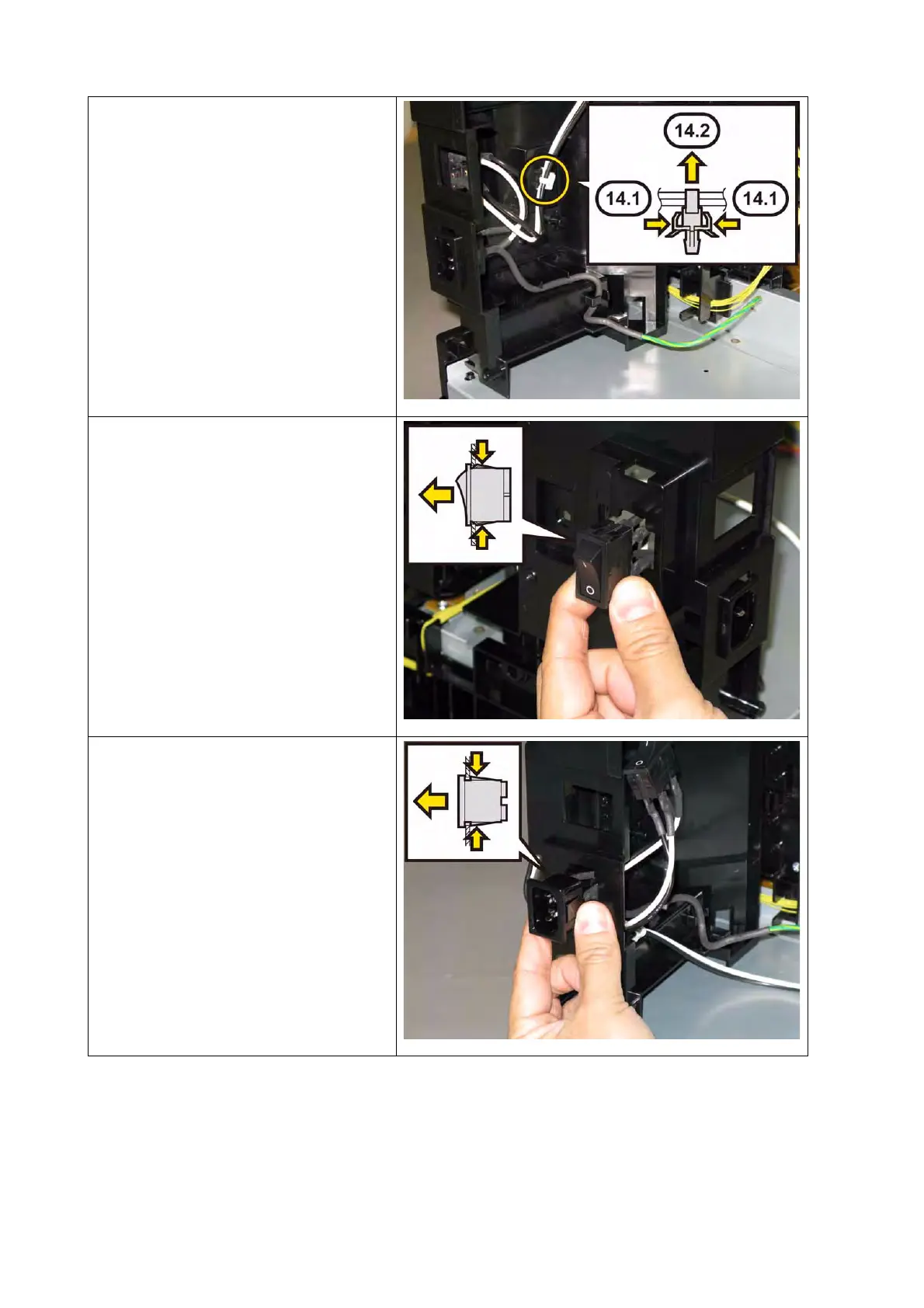

14) Release the clamp on the CHASSIS
INLET (PL8.4.11) that fixes the har-
ness of the SWITCH ASSY INLET
MG AIO. Then release the harness
of the SWITCH ASSY INLET MG
AIO from hook of the CHASSIS
INLET.
15) Release the hooks of the SWITCH
POWER, remove the SWITCH
POWER of the SWITCH ASSY
INLET MG AIO from the CHASSIS
INLET.
16) Release the hooks of the AC INLET,
remove the AC INLET of the
SWITCH ASSY INLET MG AIO
from the CHASSIS INLET.
