4 - 269
Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]

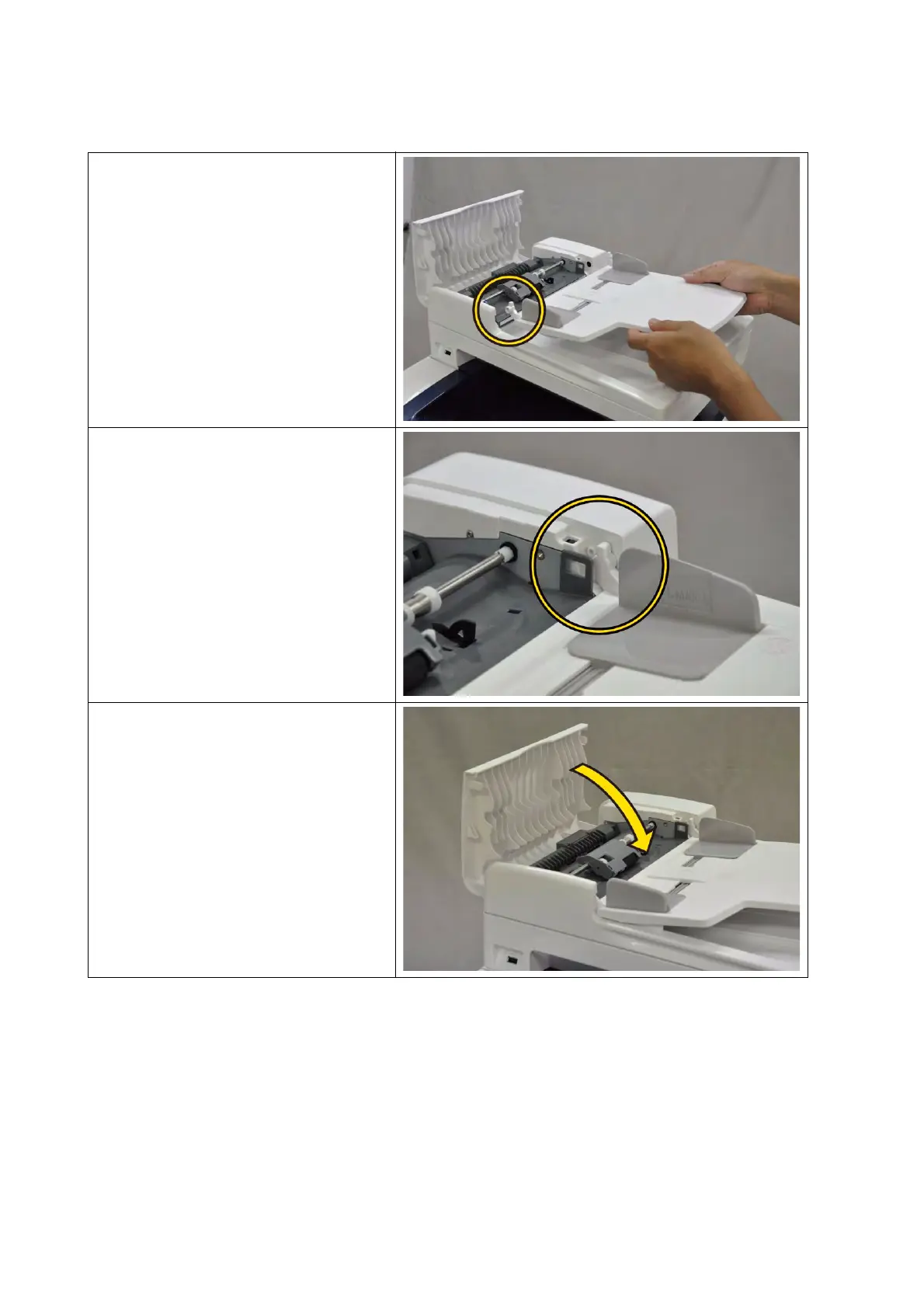

1) Mate the boss of the TRAY ASSY
ADF with the hole of the ADF
ASSY.
2) Depress the hinge of the TRAY
ASSY ADF to mate the boss of the
TRAY ASSY ADF with the hole of
the ADF ASSY. Attach the TRAY
ASSY ADF.
3) Close the COVER TOP ADF.
