Fuji Xerox DocuPrint CM305 df Service Manual

4 - 63
Chapter 4 Disassembly / Assembly and Adjustments

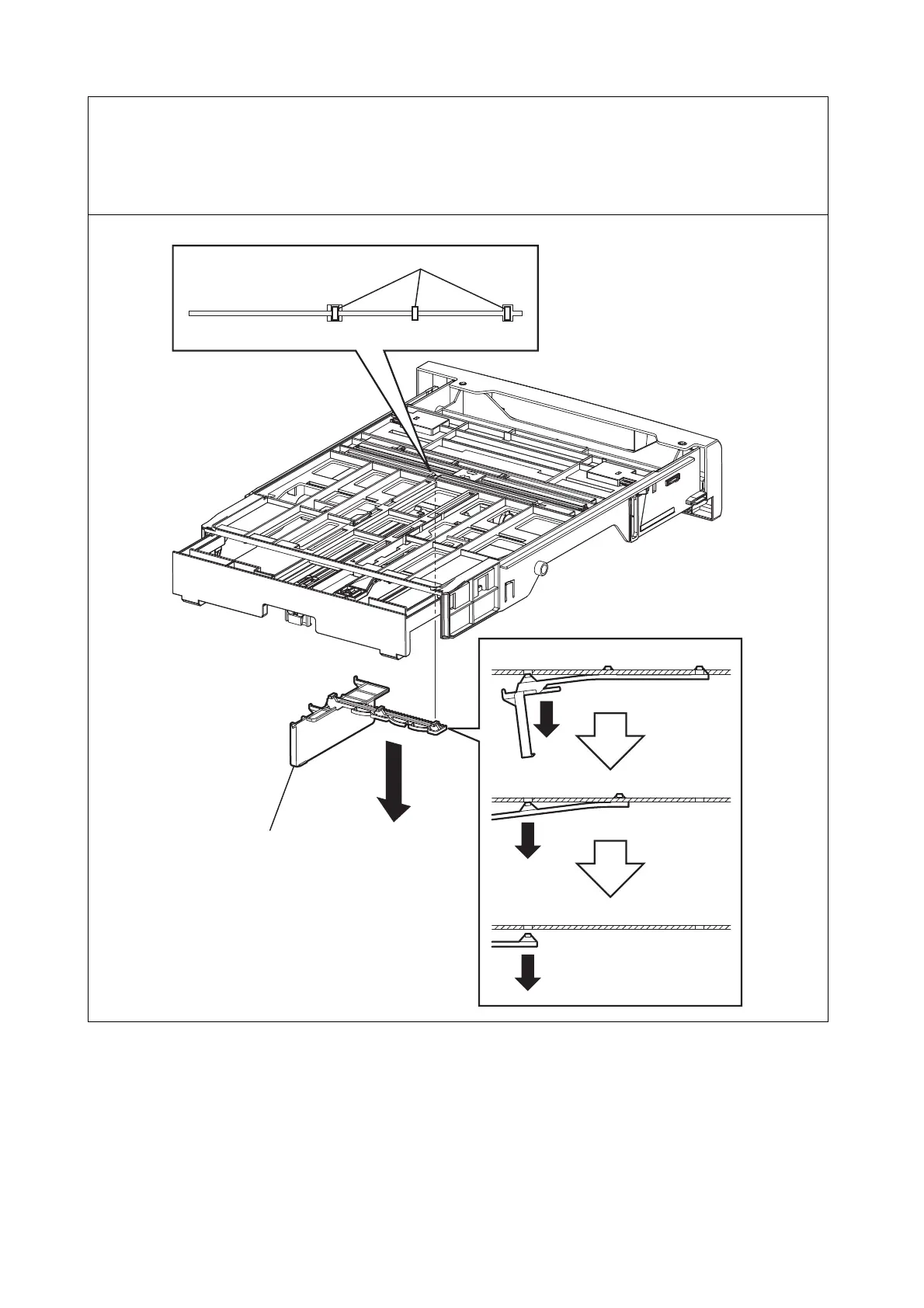

4) Shift the GUIDE SIDE L (PL2.1.6) to inside to mate the two under hooks on the GUIDE SIDE L
with holes of the HOUSING CST 250 (PL2.1.18).
5) Remove GUIDE SIDE L from CASETTTE ASSY 250 MG AIO by sliding GUIDE SIDE L so that
the three hooks (left, center, right) on the bottom are released from the holes on HOUSING CST
250. Ensure that the hooks are released one by one from left to right.
GUIDE SIDE L
hook
