Fuji Xerox DocuPrint CM305 df Service Manual

4 - 177
Chapter 4 Disassembly / Assembly and Adjustments
NOTE
When carrying out the work described next procedure, take care not to drop the
GEAR T4.

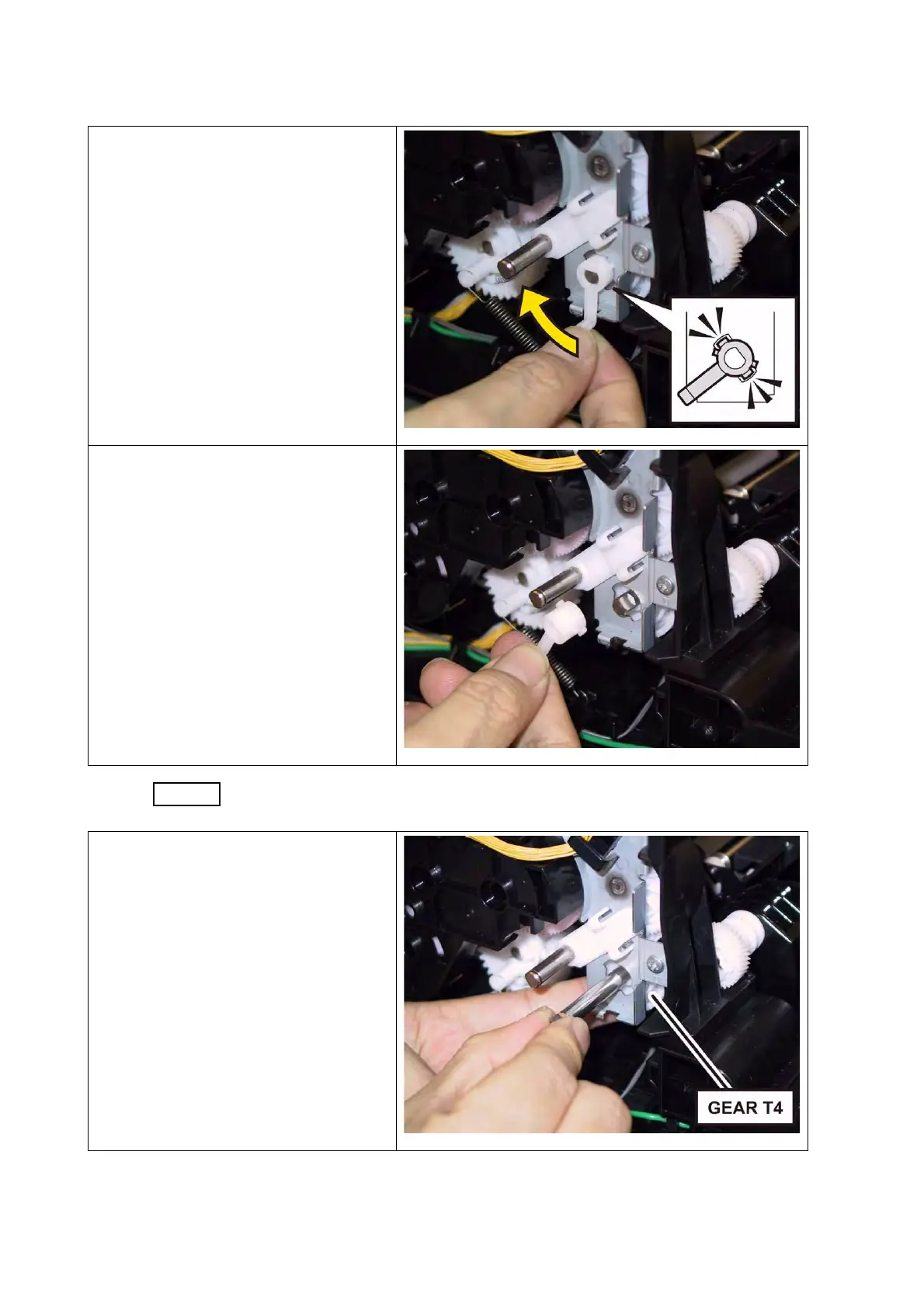

9) Rotate the STOPPER PIVOT
(PL6.1.3), mate the tabs of the
STOPPER PIVOT with the notches
of the DRIVE ASSY MAIN
(PL7.1.2).
10) Remove the STOPPER PIVOT from
the printer.
11) Pull out the PIVOT TRANS L
(PL6.1.4), remove the GEAR T4
(PL6.1.5) from the printer.
