Chapter 10 Machine Overview
10.9.2 Document Scanning at Platen (IIT)

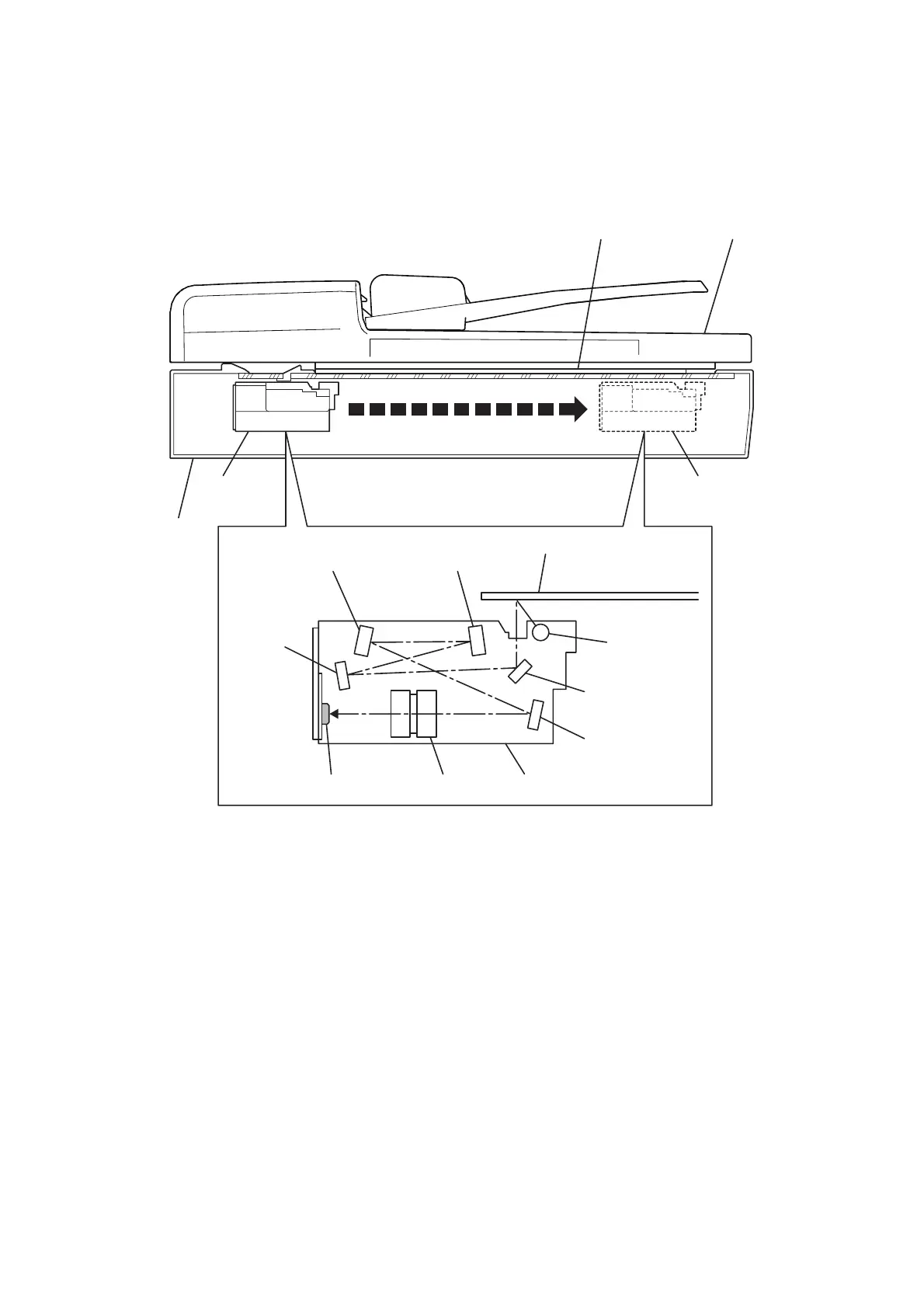

By the torque from the Carriage Motor, the Carriage Assy in the IIT moves at the shifting speed
corresponding to the set magnification to illuminate the document by the exposure lamp and to capture
the reflected light by the CCD Image Sensor through the multiple mirrors and the lens.
MiA06002GA
ADFDocument
Carriage AssyCarriage Assy
IIT
Document
Mirror 1
Exposure Lamp
Mirror 2
Mirror 3Mirror 4
Mirror 5
Lens
CCD Image Sensor
Carriage Assy
