4 - 147
Chapter 4 Disassembly / Assembly and Adjustments

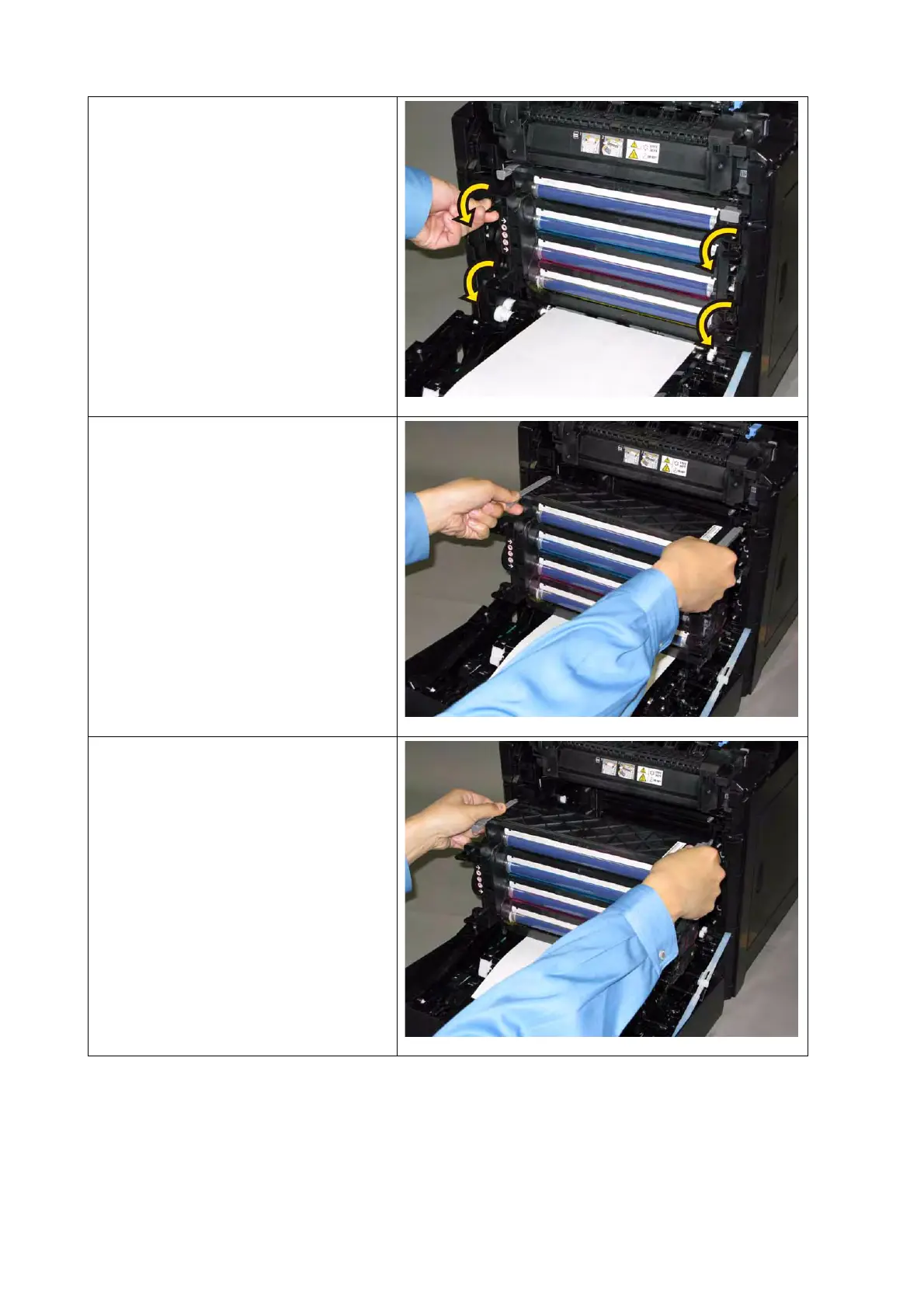

5) Rotate the four stoppers of the PHD
ASSY (PL4.1.21) to the counter clock
wise direction, to release the lock.
6) Remove the PHD ASSY toward you
by pulling it by the left and right
handles.
7) Lift up the PHD ASSY from the
printer.
