Fuji Xerox DocuPrint CM305 df Service Manual

4 - 148
Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]
NOTE
Check that the PHD ASSY is secured.

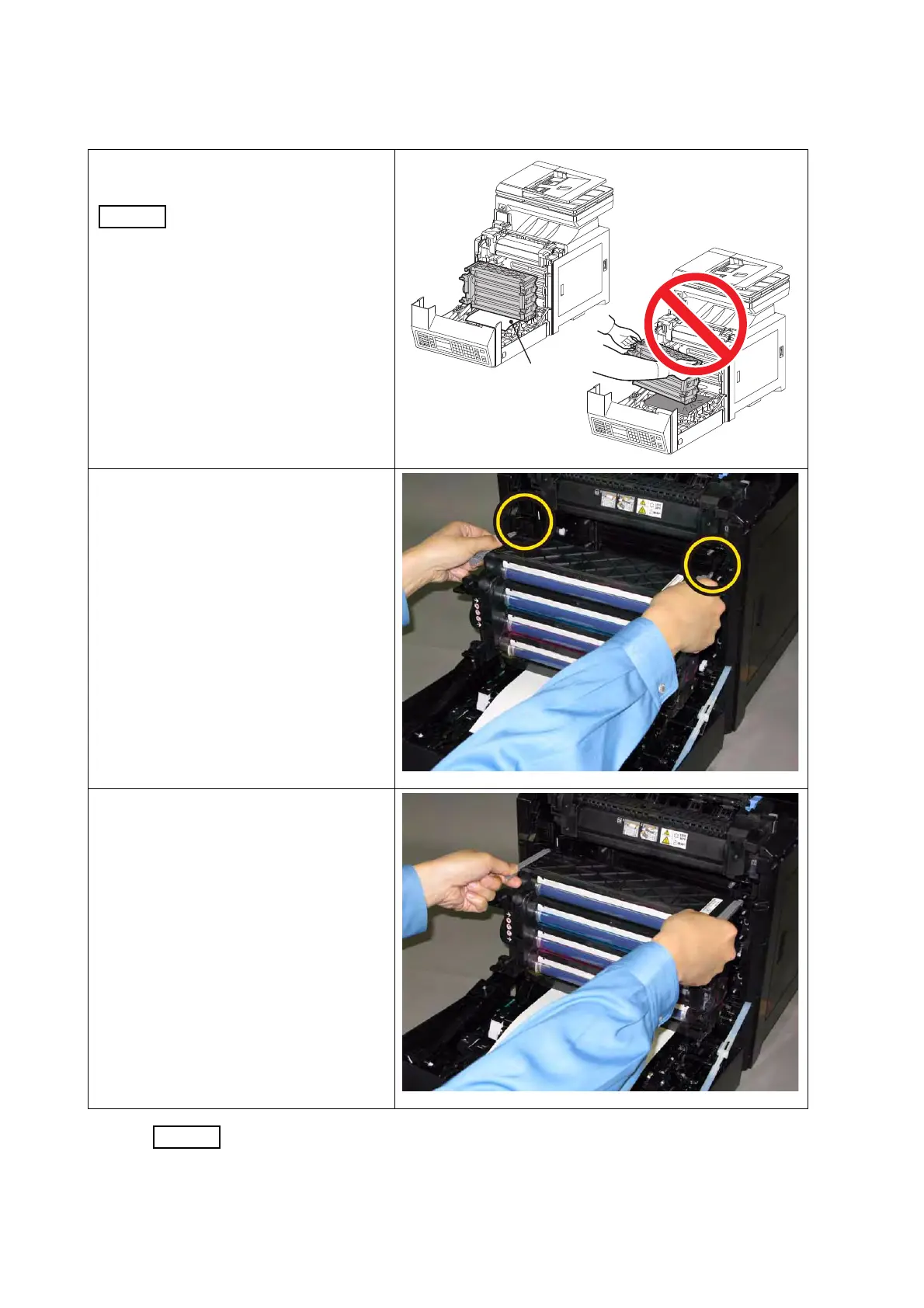

1) Put the paper on the TRANSFER
ASSY (PL6.1.7) to protect the belt.
NOTE
When carrying out the work
this procedure, take care
not to cover the left and
right of the belt guards with
the paper.
2) Mate the left and right arrows on
the Handle of the PHD ASSY with
the guides of the printer.
3) Push the PHD ASSY into the
printer until it is stopped.
Paper
