Fuji Xerox DocuPrint CM305 df Service Manual

3 - 18
Chapter 3 Image Quality Troubleshooting
8

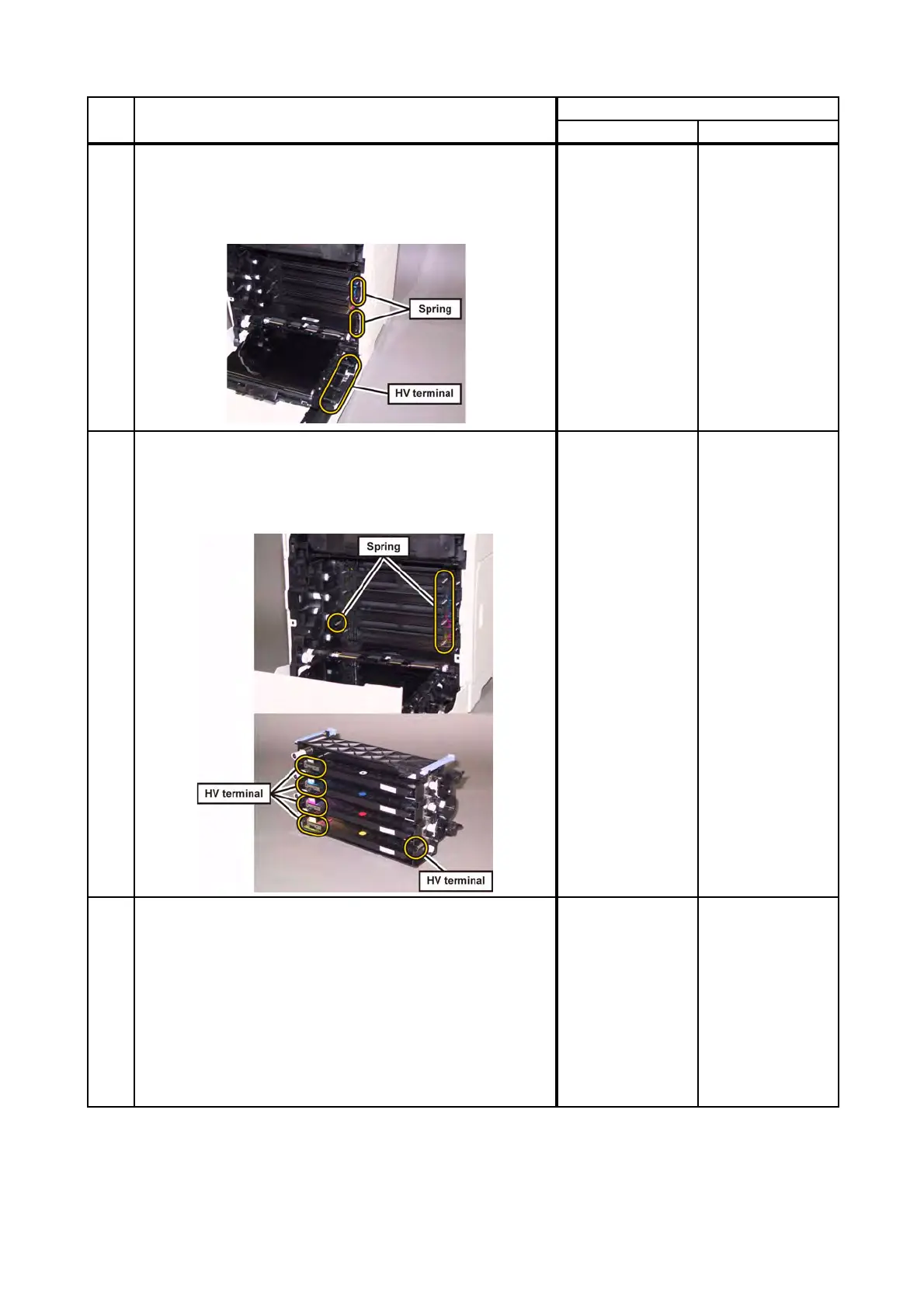

Checking the TRANSFER ASSY for connection.
Open the COVER ASSY FRONT.
Are four HV terminals on the TRANSFER ASSY, and four
springs on the frame (PL4.1.11, 12, 13 and 14) dirty and/or
deformed?
Clean or replace
the TRANSFER
ASSY or
SPRING(s).
Go to step 9.
9
Checking the PHD ASSY for connection.
Remove the PHD ASSY.
Are five HV terminals on the PHD ASSY, and five springs on
the frame (PL4.1.10 and PL4.1.15 to 18) dirty and/or
deformed?
Clean and/or
replace the PHD
ASSY or
SPRING(s).
Go to step 10.
10
Checking after replacing the PHD ASSY.
Replace the PHD ASSY. (Refer to REP4.6.)
Is the image printed correctly?
End of work.
Warning: Start the
operation after the
FUSING UNIT has
cooled down.
Replace the
FUSING UNIT.
(Refer to REP6.1.)
After replacement,
be sure to clear
the life counter
value.
Step Check
Remedy
Yes No
