Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]

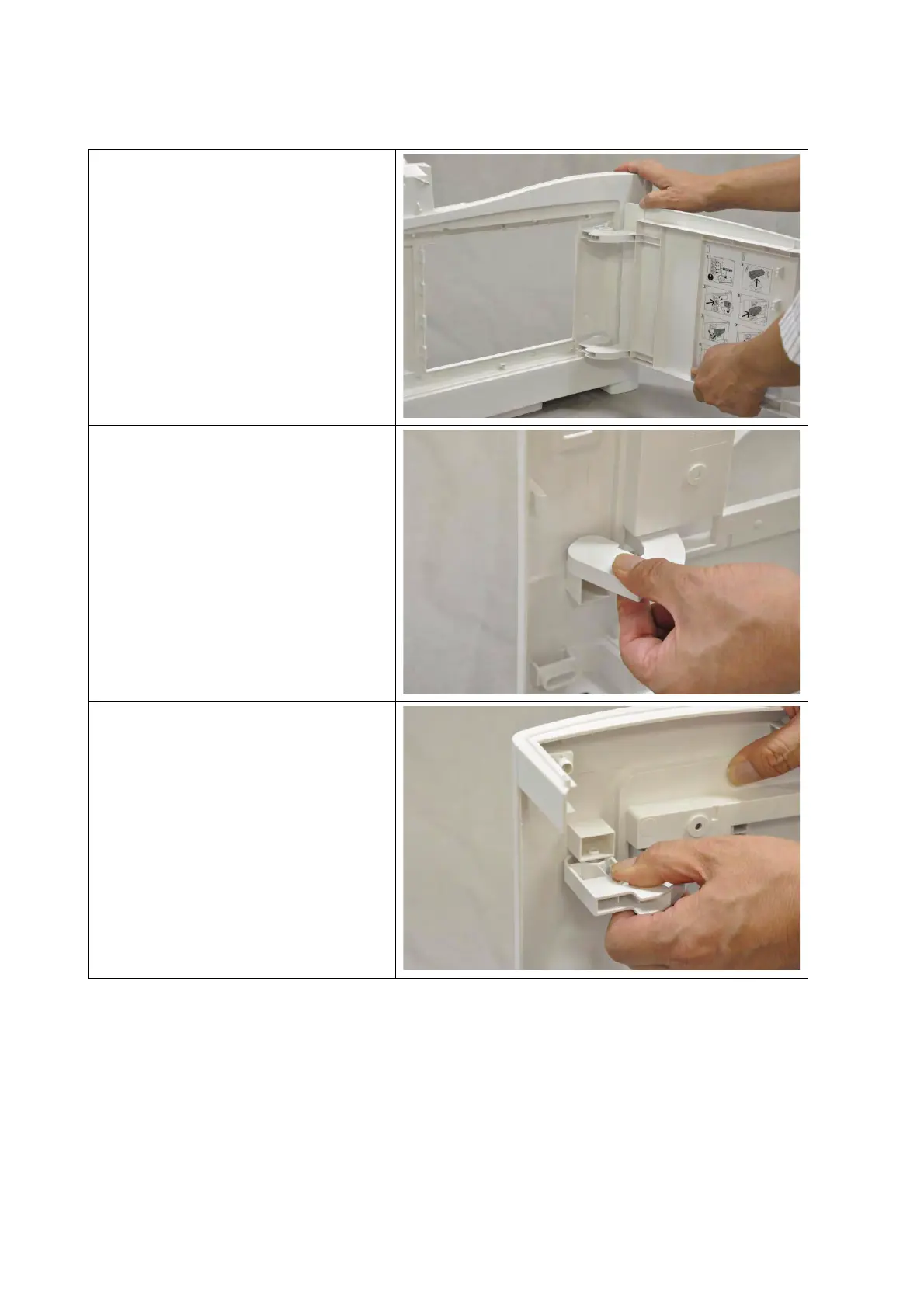

1) Insert the upper and lower hinges of
the COVER WINDOW TNR AIO
into the hole of the COVER SIDE R
AIO.
2) Mate the boss on the lower hinge of
the COVER WINDOW TNR AIO
with the hole of the COVER SIDE R
AIO.
3) Mate the boss on the upper hinge of
the COVER WINDOW TNR AIO
with the hole of the COVER SIDE R
AIO to attach the COVER WIN-
DOW TNR AIO.
