4 - 37
Chapter 4 Disassembly / Assembly and Adjustments
When carrying out the work described below, leave the relay connector on the
printer side.

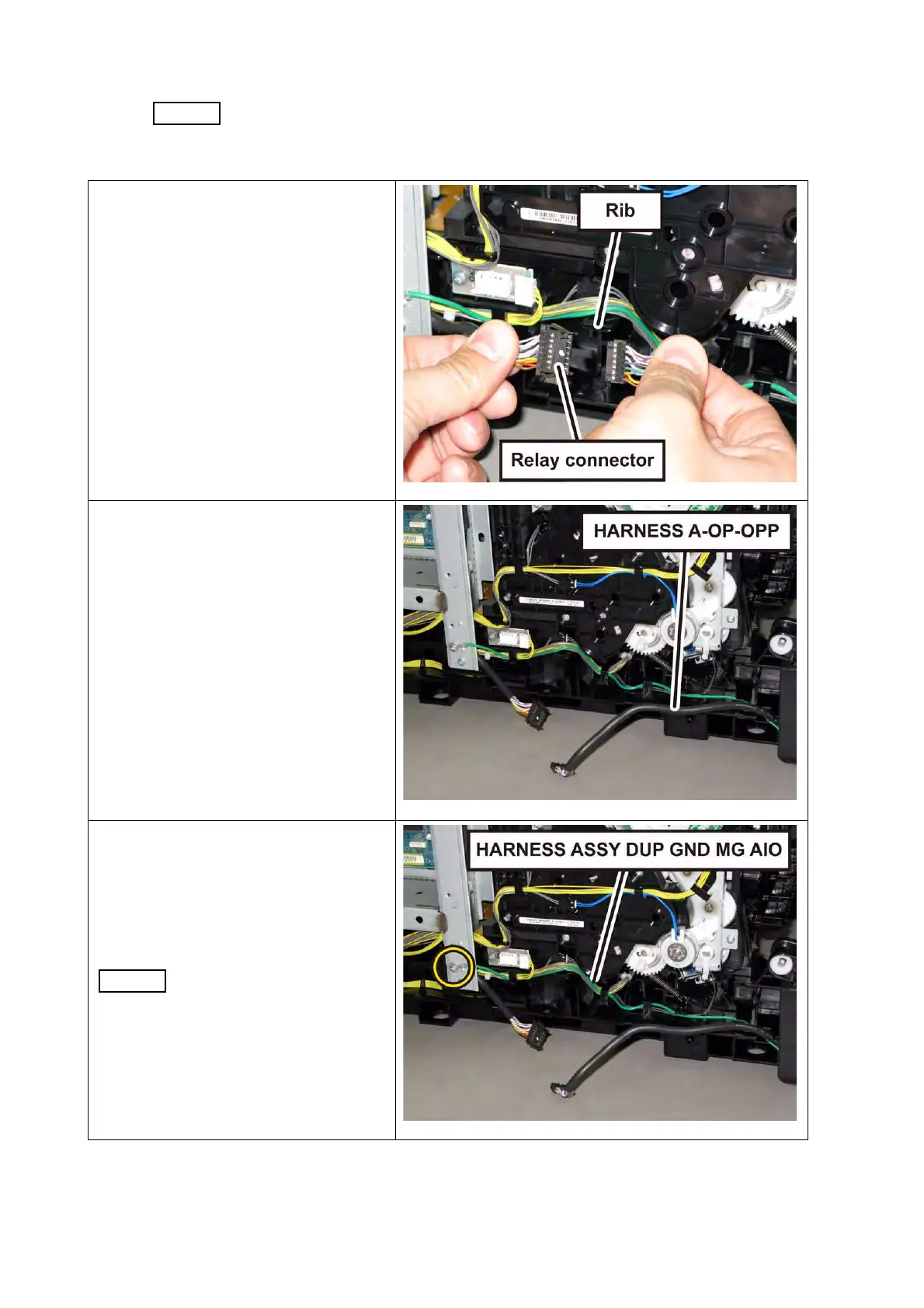

9) Release the relay connector from the
rib of the printer, disengage the con-
necter (P/J5301) of the HARNESS
A-OP-OPP (PL1.2.27).
10) Release the HARNESS A-OP-OPP
from the hooks of the printer.
11) Remove the one screw (silver, 6mm)
that fixes the grounding terminal of
the HARNESS ASSY DUP GND
MG AIO (PL1.2.15), release the
HARNESS ASSY DUP GND MG
AIO from the hooks of the printer.
This step is only duplex
model.
To Next Page
