Fuji Xerox DocuPrint CM305 df Service Manual

4 - 80
Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]
1) Close the COVER ASSY FRONT.
3) Open the COVER ASSY FRONT.

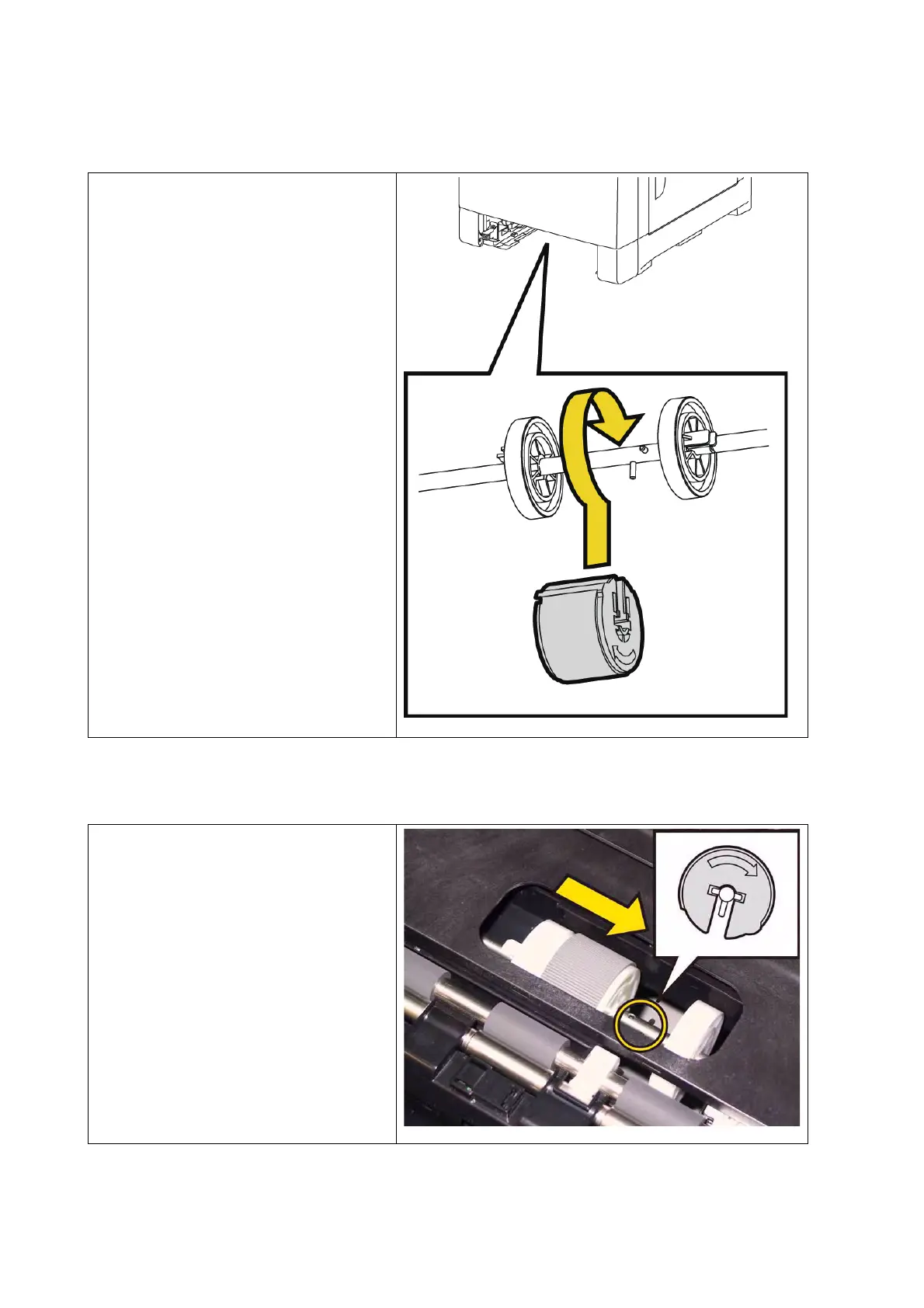

2) Fit the ROLL ASSY FEED to the
SHAFT ASSY FEED with the
groove of the ROLL ASSY FEED
facing upward, rotate the ROLL
ASSY FEED 180 degrees so that the
pin on the SHAFT ASSY FEED is
aligned with the groove on the
ROLL ASSY FEED.
4) Move the ROLL ASSY FEED to the
right side, put the groove of the
ROLL ASSY FEED on the pin of the
SHAFT ASSY FEED.
