Fuji Xerox DocuPrint CM305 df Service Manual

4 - 92
Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]

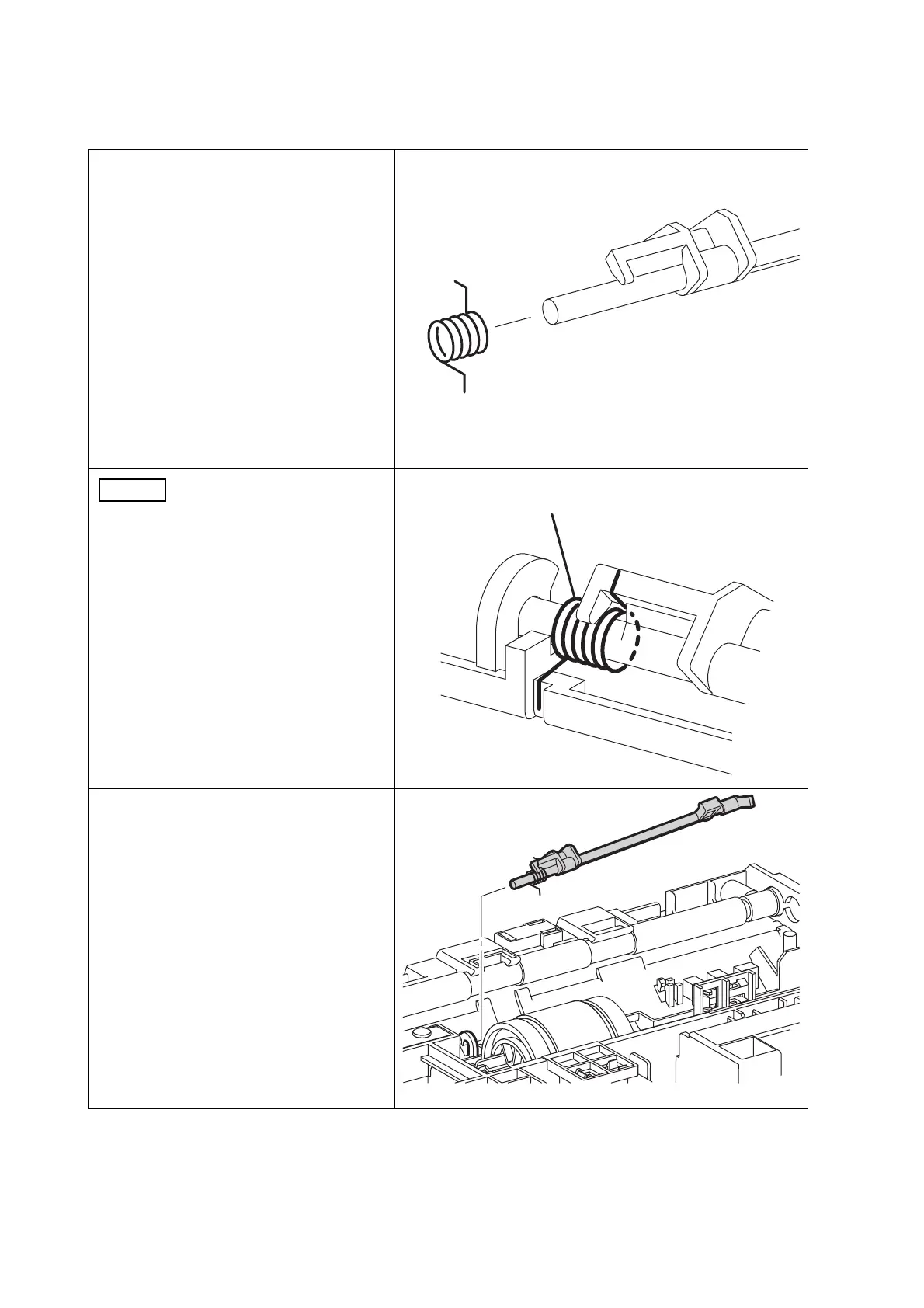

1) Attach the SPRING ACT REGI to
the ACTUATOR REGI IN.
NOTE
When carrying out the work
described next procedure,
ensure that the SPRING
ACT REGI is hung to
ACTUATOR REGI IN and
the CHUTE UP correctly.
2) Insert the right shaft of the ACTUA-
TOR REGI IN into the hole of the
CHUTE UP, hang the SPRING ACT
REGI to the CUHTE UP.
SPRING ACT REGI
