4 - 104
Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]

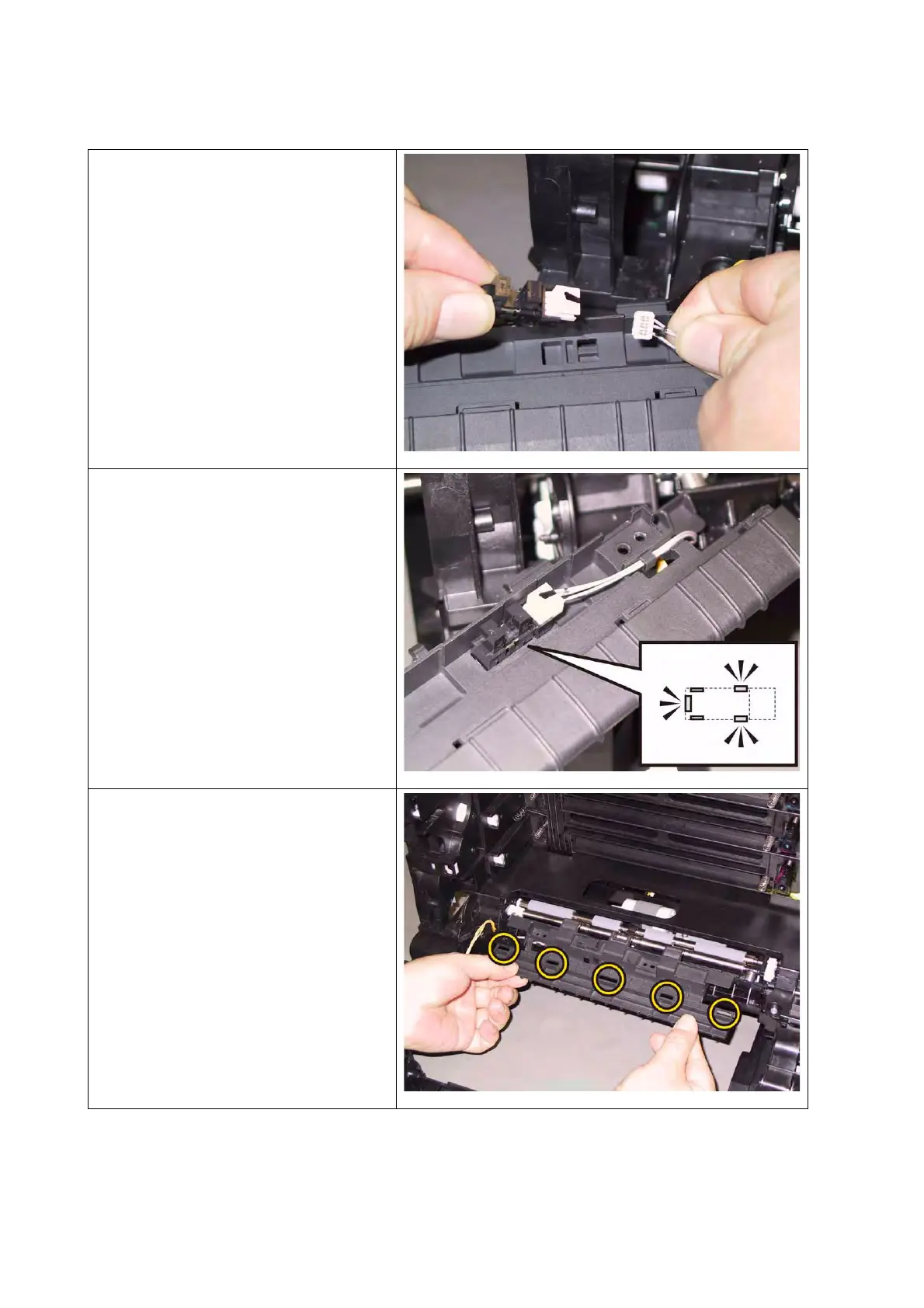

1) Engage the connector (P/J233) of the
SENSOR PHOTO: SSI NO PAPER.
2) Replace the SENSOR PHOTO: SSI
NO PAPER to the BRACKET SNS
by mating the hook of the SENSOR
PHOTO: SSI NO PAPER with its
mounting position.
3) Mate the five tabs of the BRACKET
SNS with the printer.
To Next Page
