4 - 119
Chapter 4 Disassembly / Assembly and Adjustments

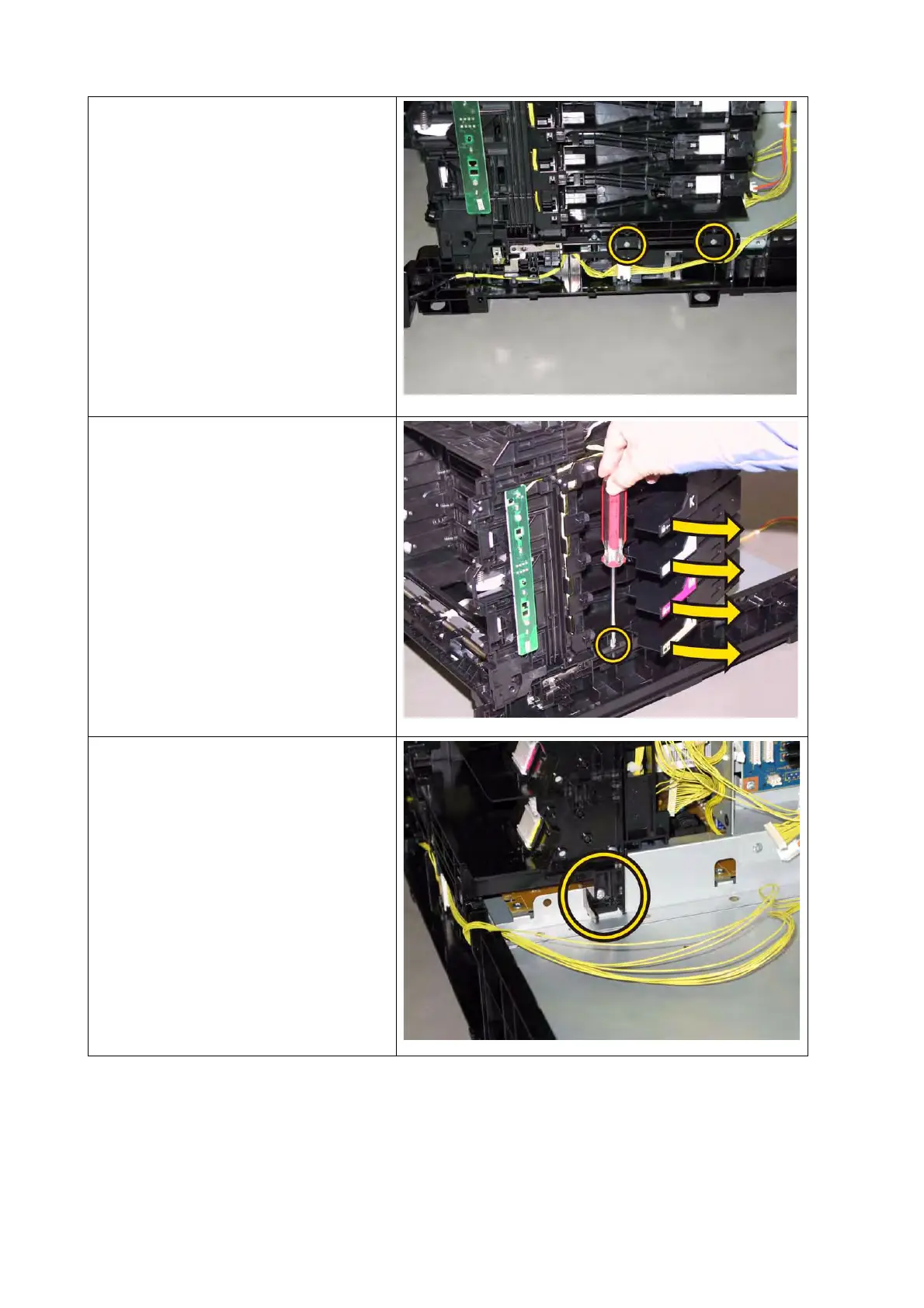

31) Remove the two screws (silver, tap,
8mm) that fix the under part of the
DISPENSER ASSY.
32) Open the HOLDER ASSY TCRU
(K), (C), (M), and (Y), remove the
one screw (silver, tap, 8mm) that
fixes the right side of the printer
frame.
33) Remove the one screw (silver, M4,
6mm) that fixes the rear side of the
DISPENSER ASSY.
To Next Page
