Fuji Xerox DocuPrint CM305 df Service Manual

4 - 144
Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]
NOTE
Use the wrist strap to protect the PWB from the electrostatic.

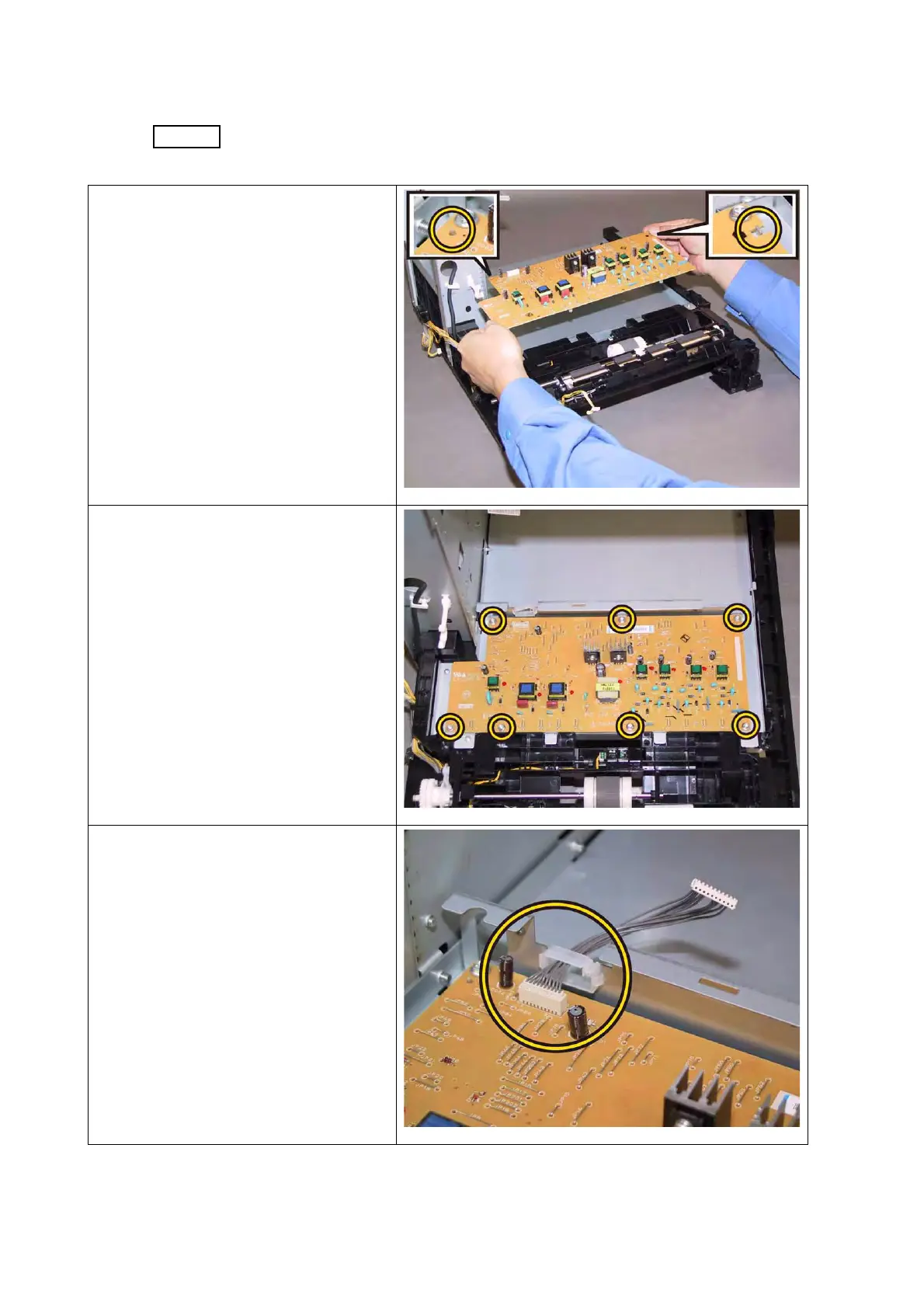

1) Mate the notch and hole of the
PWBA HVPS with the tabs of the
CHASSIS ASSY HVPS, attach the
PWBA HVPS.
2) Secure the PWBA HVPS to the
CHASSIS ASSY HVPS with the
seven screws (silver, 6mm).
3) Engage the connector (P/J161) of the
HARN ASSY HVPS to the PWBAH-
VPS, route the HARN ASSY HVPS
to the EDGE SADDLE. Close the
EDGE SADDLE.
