Chapter 4 Disassembly / Assembly and Adjustments

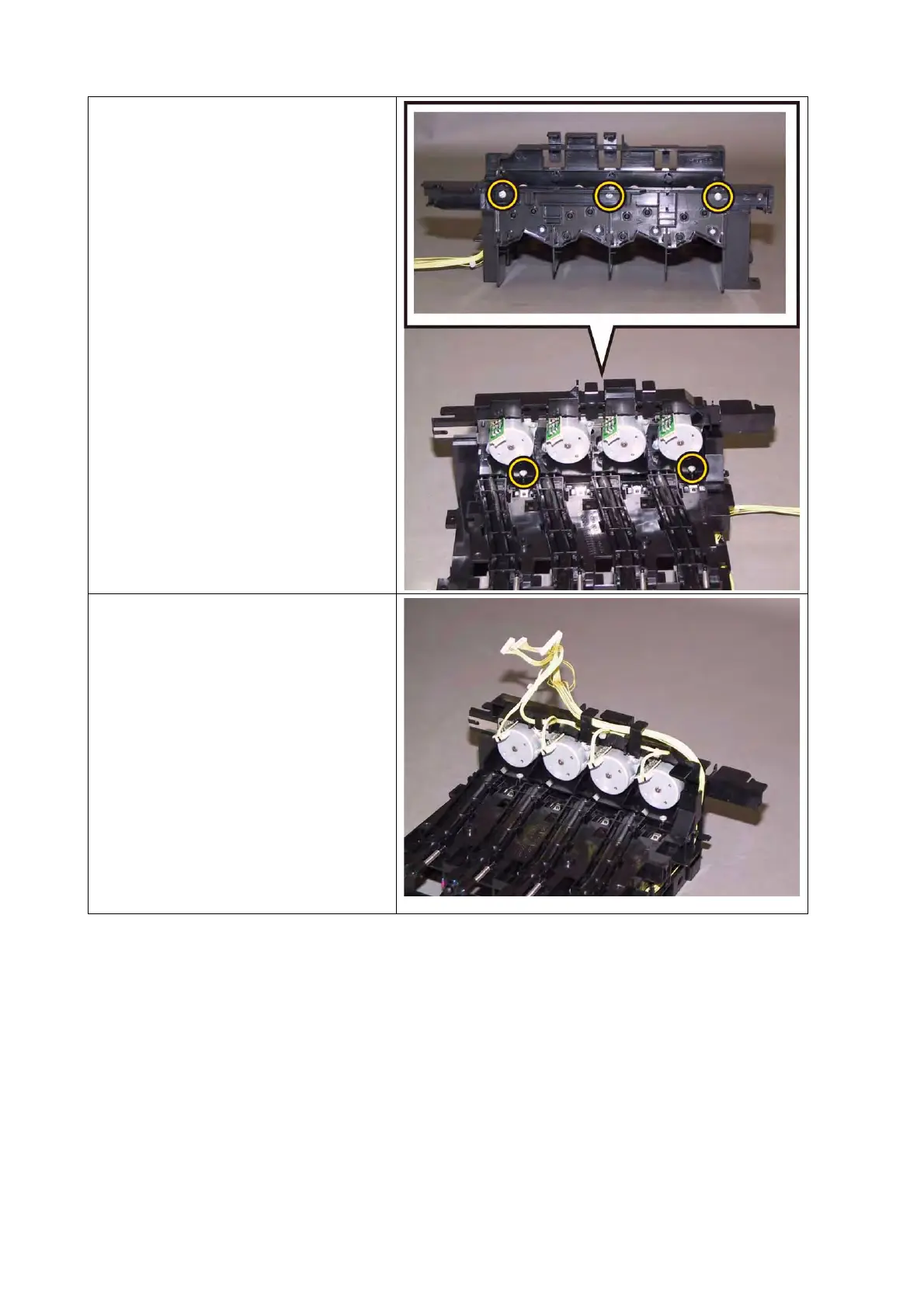

3) Secure the FRAME ASSY MOT to
the DISPENSER ASSY with the five
screws (silver, tap, 8mm).
4) Route all the harness through the
hooks of the FRAME ASSY MOT,
engage all the connectors of the
MOTOR ASSY DISP.
