Fuji Xerox DocuPrint CM305 df Service Manual

4 - 188
Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]
NOTE
Since two types of screws are used for securing the DRIVE ASSY SUB, ensure
that the right screws are used at their right securing positions.
The securing positions for tap screws are marked with [T].
The securing positions for metal screws are marked with [M].

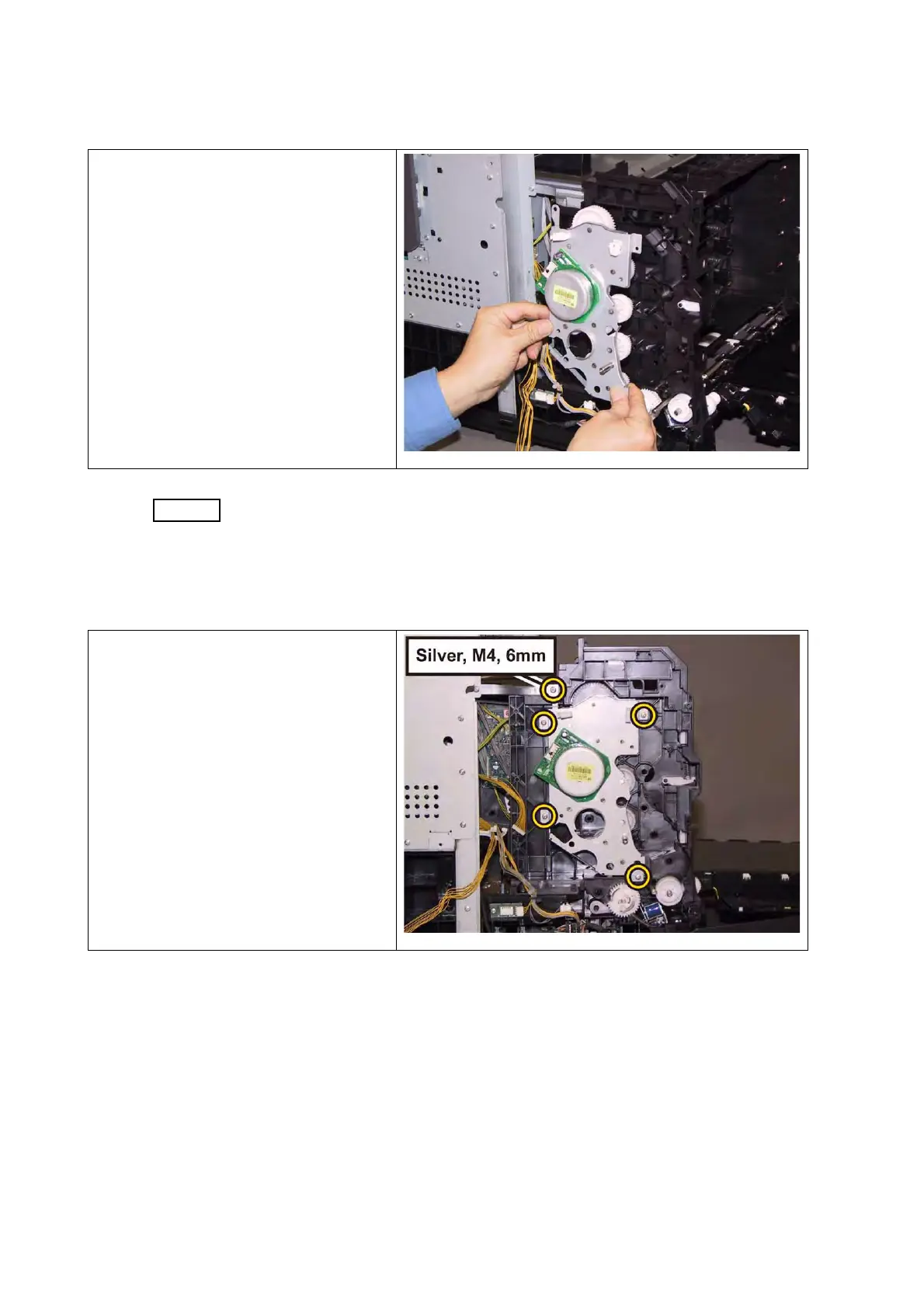

1) Attach the DRIVE ASSY SUB to the
printer.
2) Secure the DRIVE ASSY SUB to the
printer with the one screw (silver,
M4, 6mm) and the four screws (sil-
ver, tap, 8mm).
