4 - 207
Chapter 4 Disassembly / Assembly and Adjustments

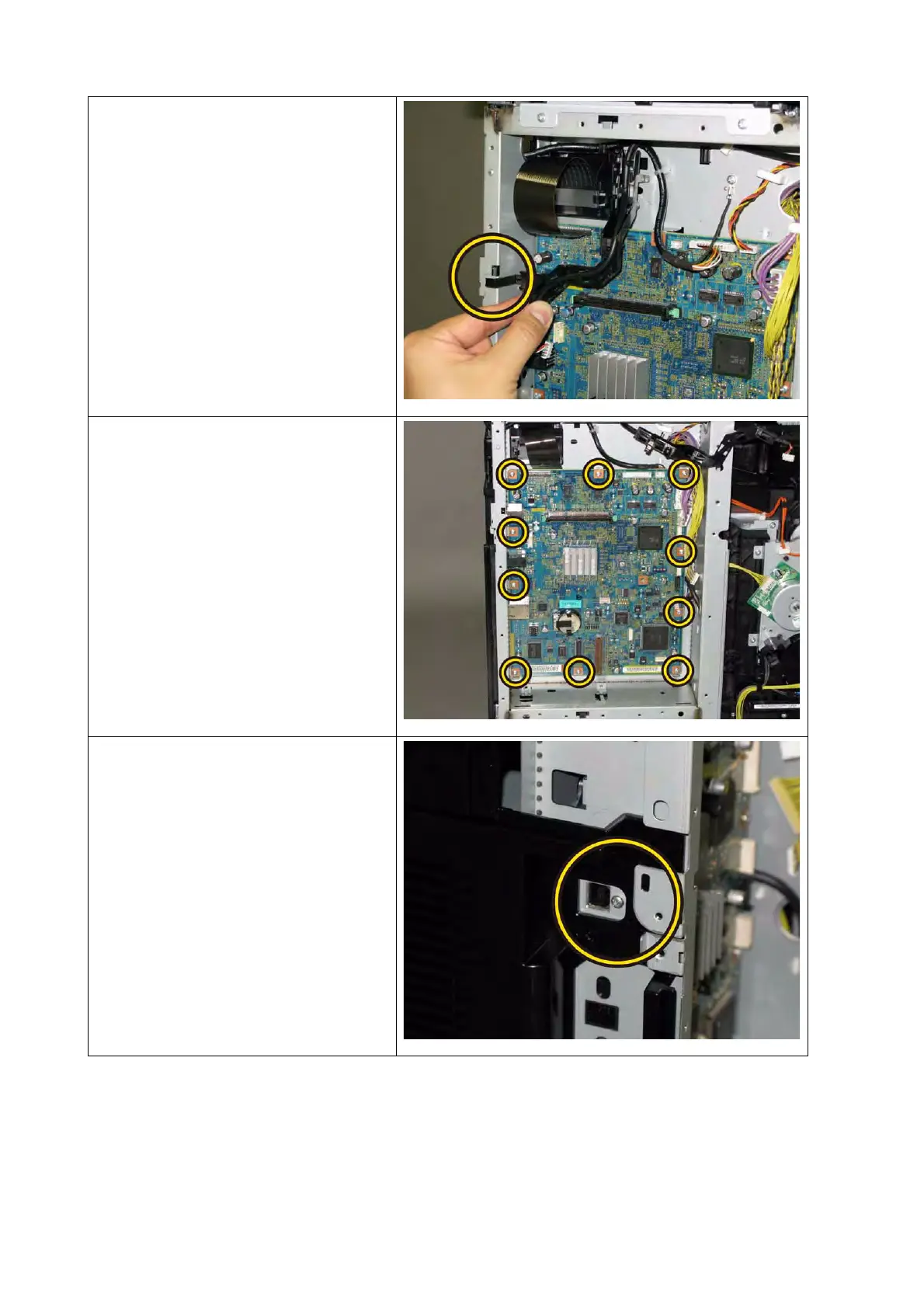

10) Release the hook of the GUIDE
HARNESS USB (PL8.4.5), remove
the GUIDE HARNESS USB from
the printer.
11) Remove the ten screws (silver, 6mm)
that fix the PWBA ESS AIO to the
printer.
12) Remove the one screw (silver, 4mm)
that fixes the USB connector of the
PWBA ESS AIO to the printer.
