Chapter 4 Disassembly / Assembly and Adjustments

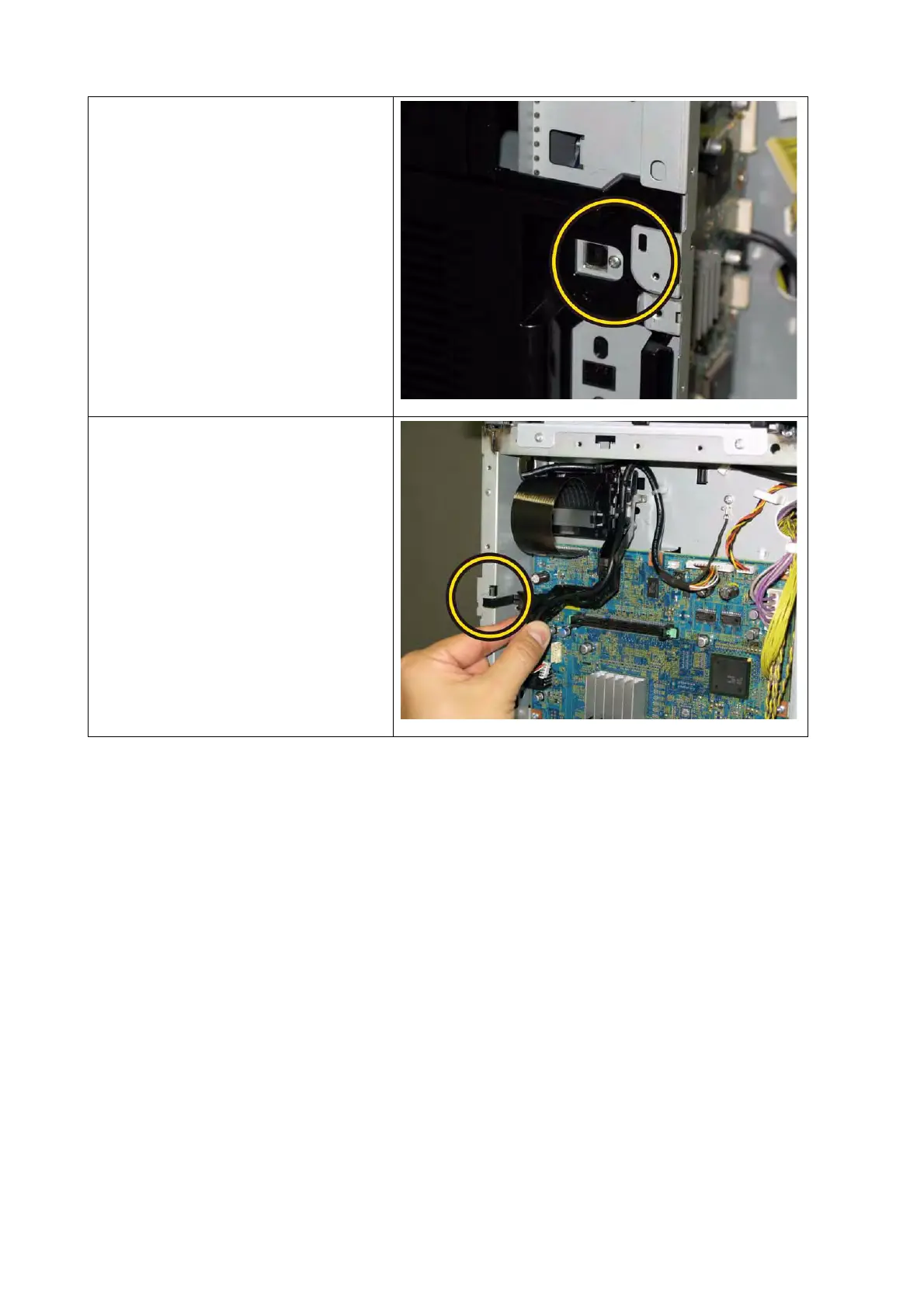

6) Secure the USB connector of the
PWBA ESS AIO to the printer with
the one screw (silver, 4mm).
7) Mate the boss and hook of the
GUIDE HARNESS USB with the
holes of the printer, attach the
GUIDE HARNESS USB. Secure the
GUIDE HARNESS USB to the
printer with the hook.
To Next Page
