Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]
Use the wrist strap to protect the PWB from the electrostatic.

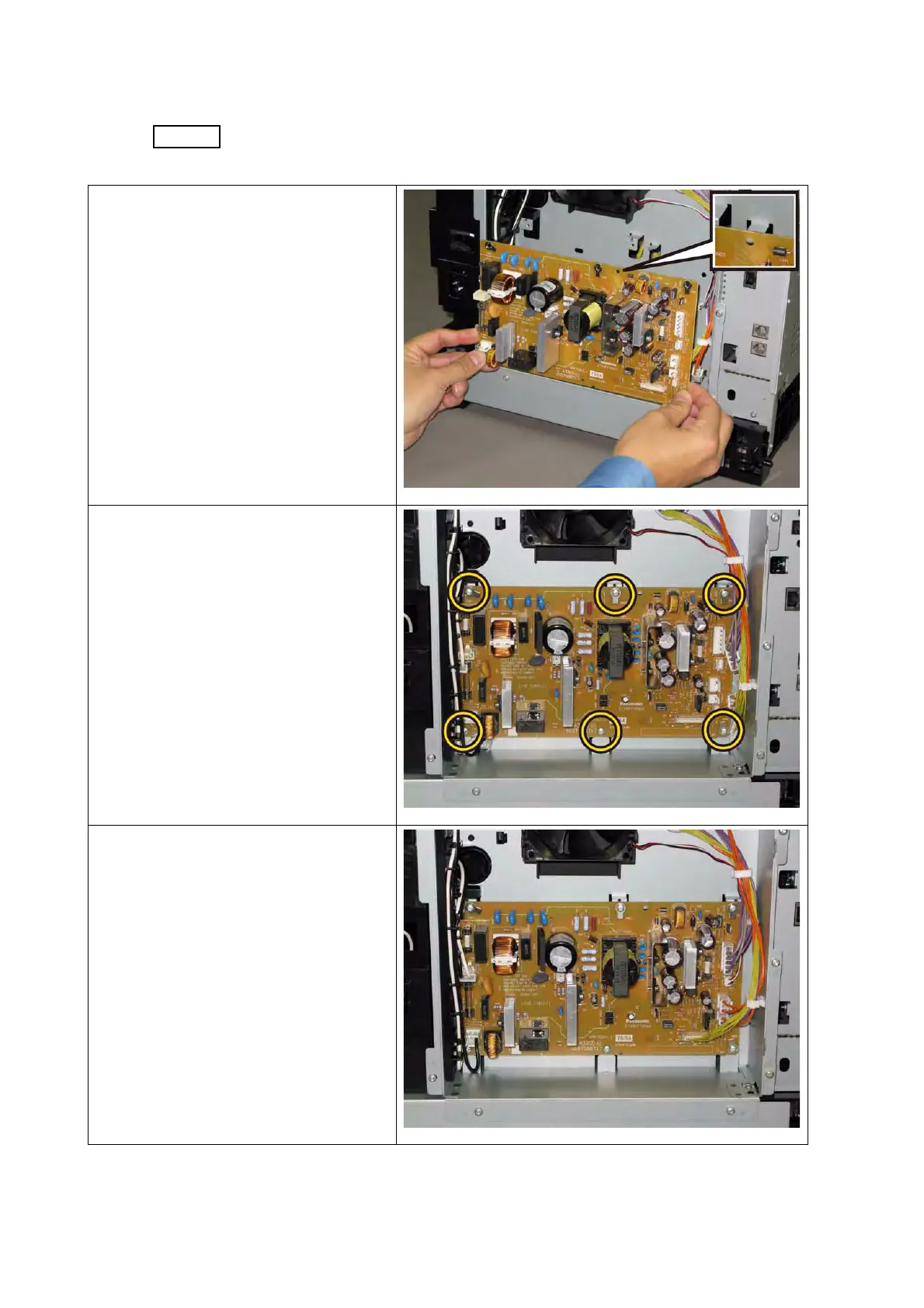

1) Attach the PWBA LVPS to the
printer.
2) Secure the PWBA LVPS to the
printer with the six screws (silver,
6mm).
3) Engage all the connectors of the
PWBA LVPS.
To Next Page
