Chapter 4 Disassembly / Assembly and Adjustments

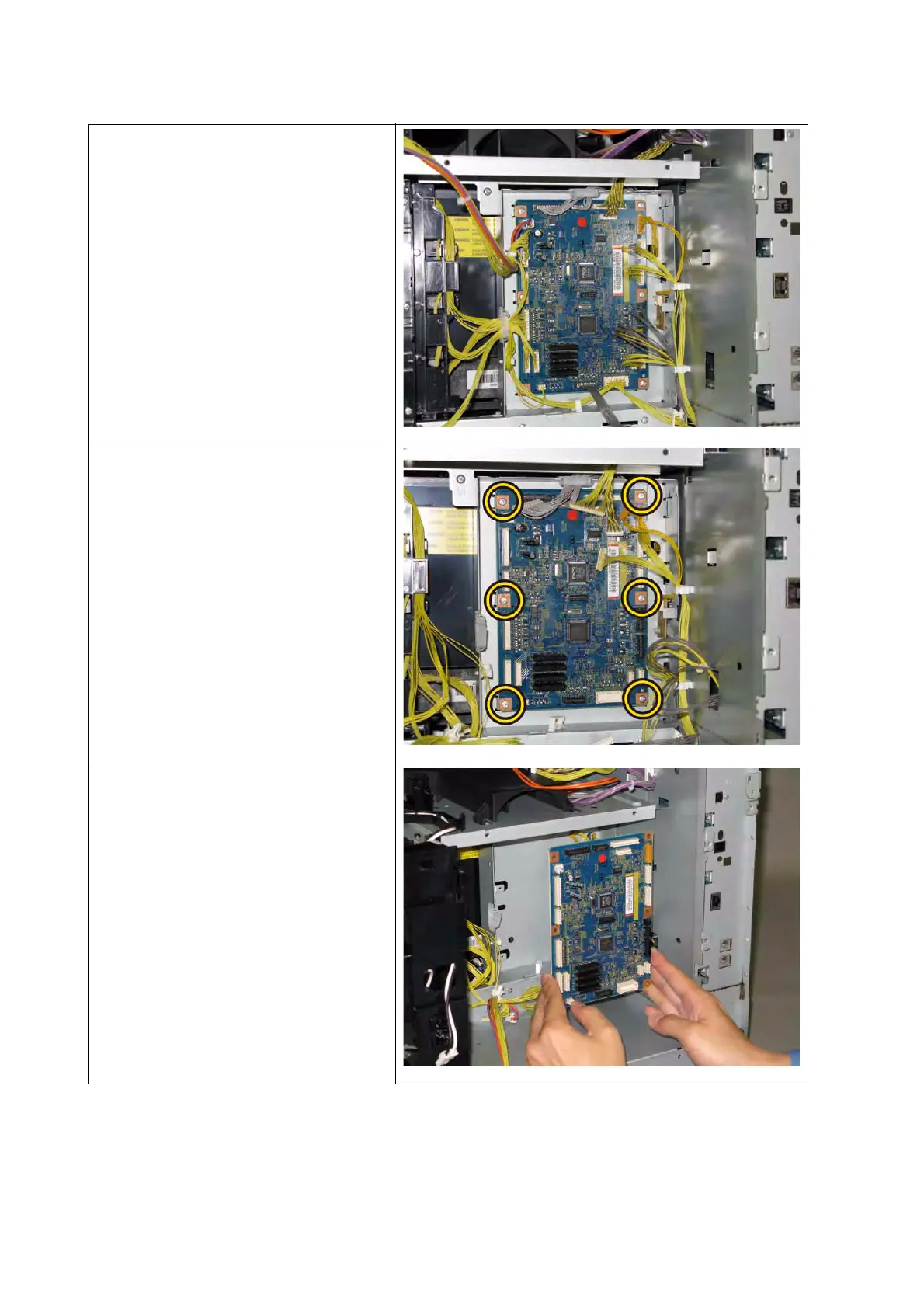

26) Disengage all the connectors of the
PWBA MCU (PL8.3.6), release the
harnesses from the three clamps on
the CHASSIS MCU (PL8.3.1).
27) Remove the six screws (silver, 6mm)
that fix the PWBA MCU to the
printer.
28) Remove the PWBA MCU from the
printer.
To Next Page
