4 - 272
Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]

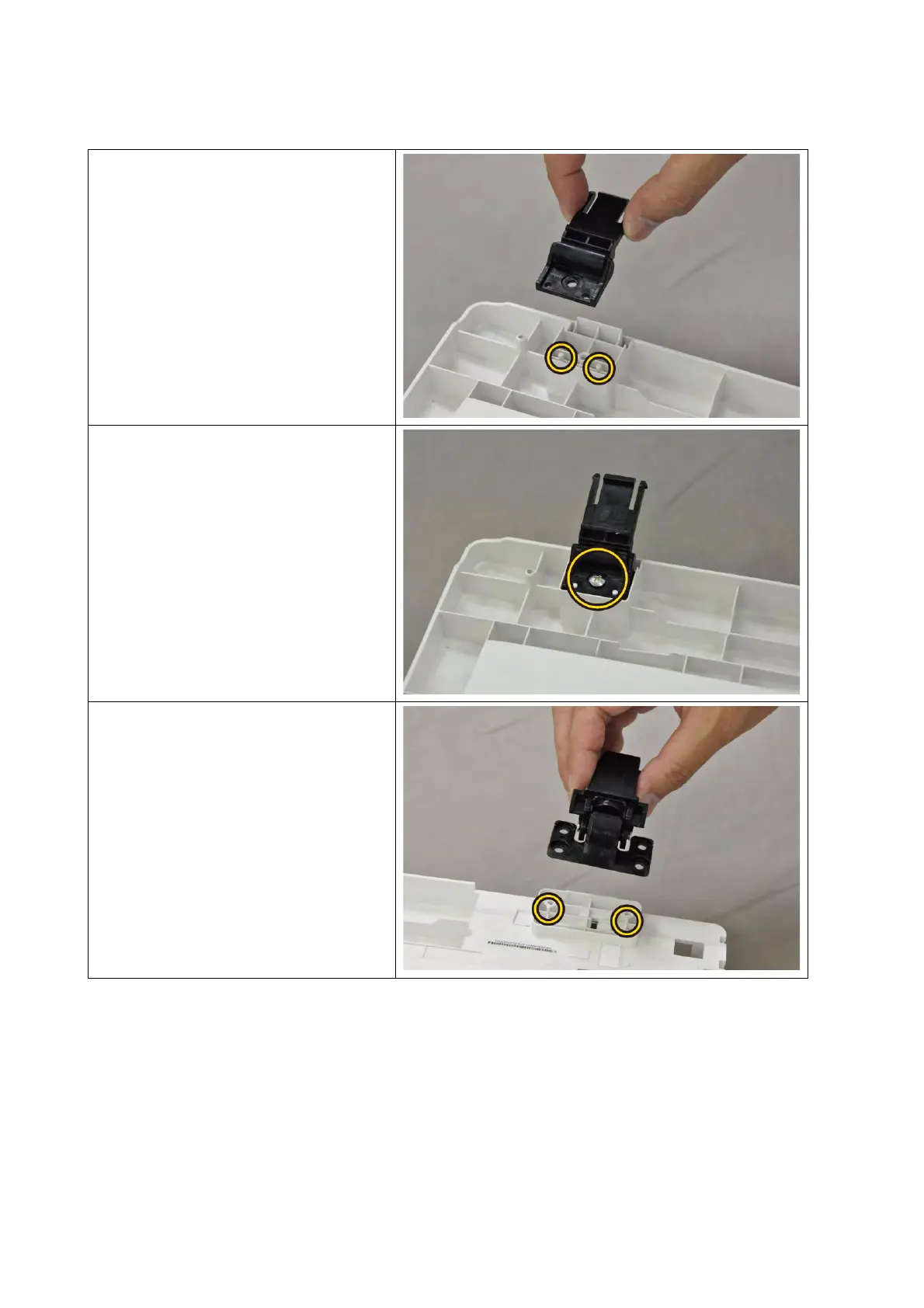

1) Mate the two holes of the
COUNTER BALANCE R with the
bosses of the ADF ASSY, attach the
COUNTER BALANCE R.
2) Secure the COUNTER BALANCE R
to the ADF ASSY with the one screw
(silver, tap, 8mm).
3) Mate the two holes of the
COUNTER BALANCE L with the
bosses of the ADF ASSY, attach the
COUNTER BALANCE L.
