Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]
The printer must be lifted by two people.
3) Insert the CASSETTE ASSY 250 OPT MG AIO into the FEEDER ASSY OPT MG AIO.
4) Insert the CASSETTE ASSY 250 MG AIO into the printer.

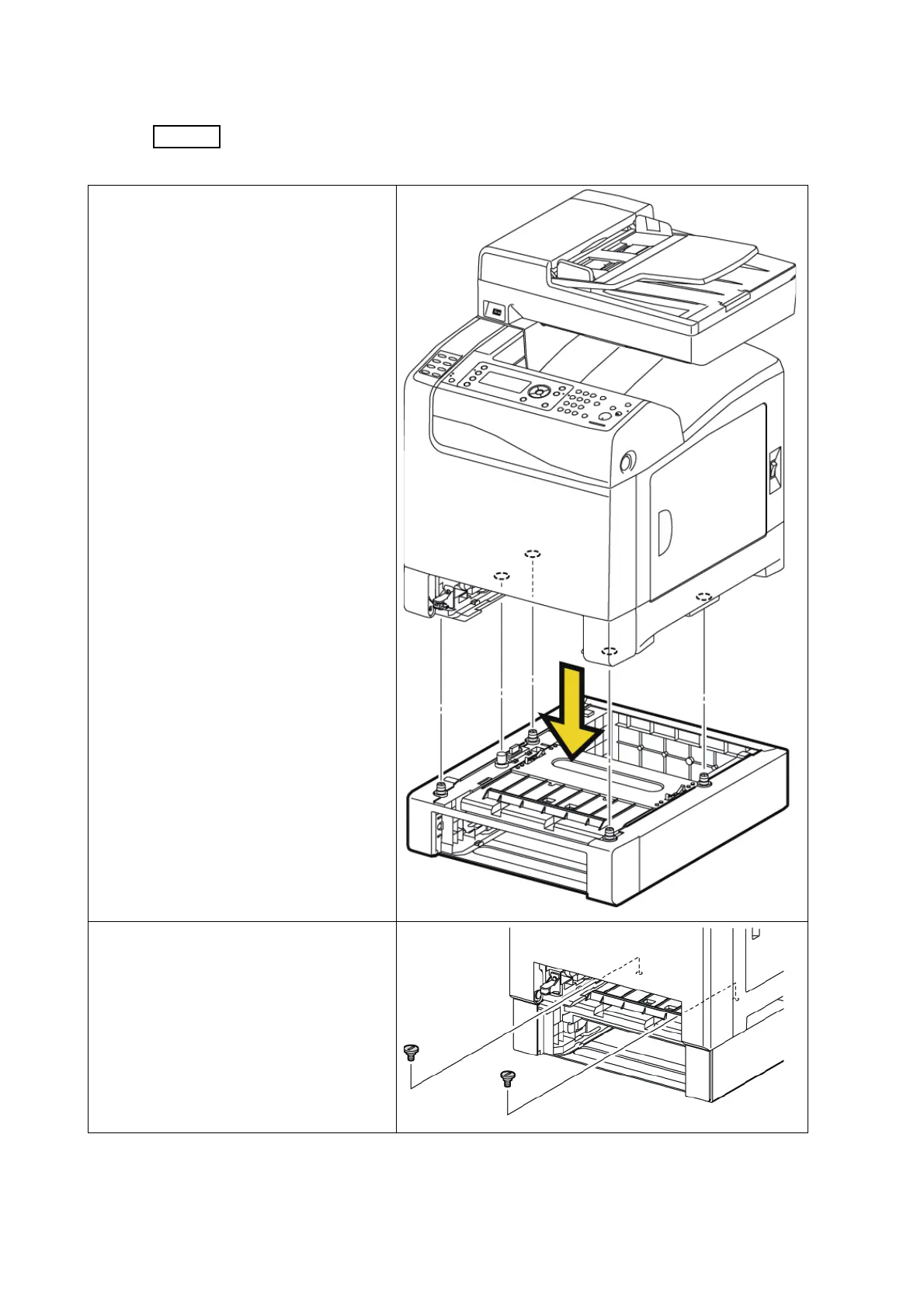

1) Place the printer on the FEEDER
ASSY OPT MG AIO with the five
holes on the bottom of the printer
aligned with the studs on the
FEEDER ASSY OPT MG AIO.
2) Secure the printer to the FEEDER
ASSY OPT MG AIO using the two
SCREW JOINTs.
