Chapter 6 General
Duplex Clutch
NOTE: This procedure is for the technical staff.
Combination test is as follows.

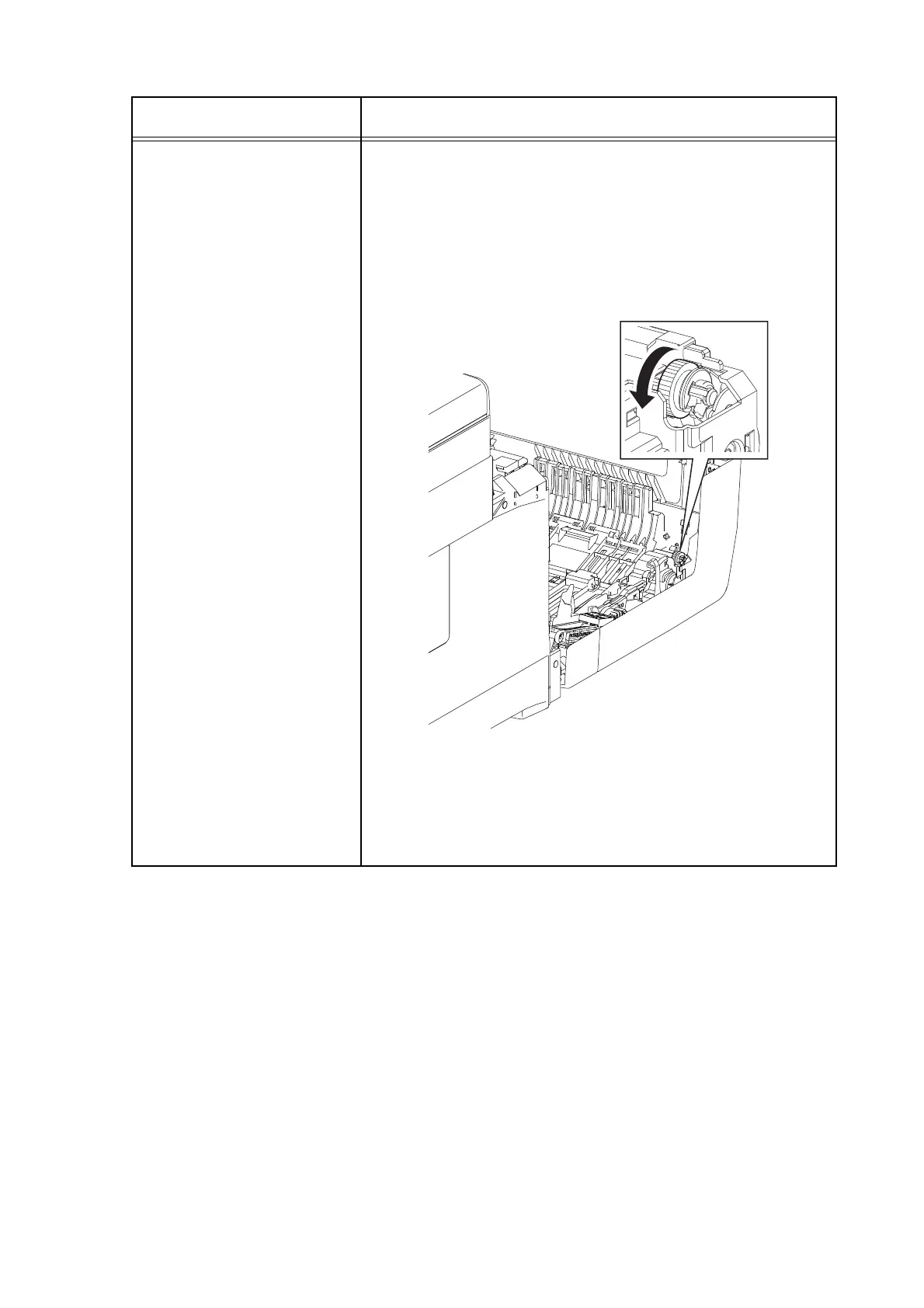

The duplex gear rotates when the Exit Motor and the Duplex Clutch are
executed.
1) Power on the printer, and enter the Diag Mode.
2) Open the Front Cover.
3) Cheat the Safety Interlock System.
4) Execute the Exit Motor and the Duplex Clutch.
5) Check that the Gear rotates.
6) Press the "STOP" key to stop the clutch.
7) Press the "" key to display the Exit Motor.
8) Press the "STOP" key to stop the motor.
9) Remove the cheater.
10) Close the Front Cover.
