Fuji Xerox DocuPrint CM305 df Service Manual

7 - 22
Chapter 7 Wiring Data

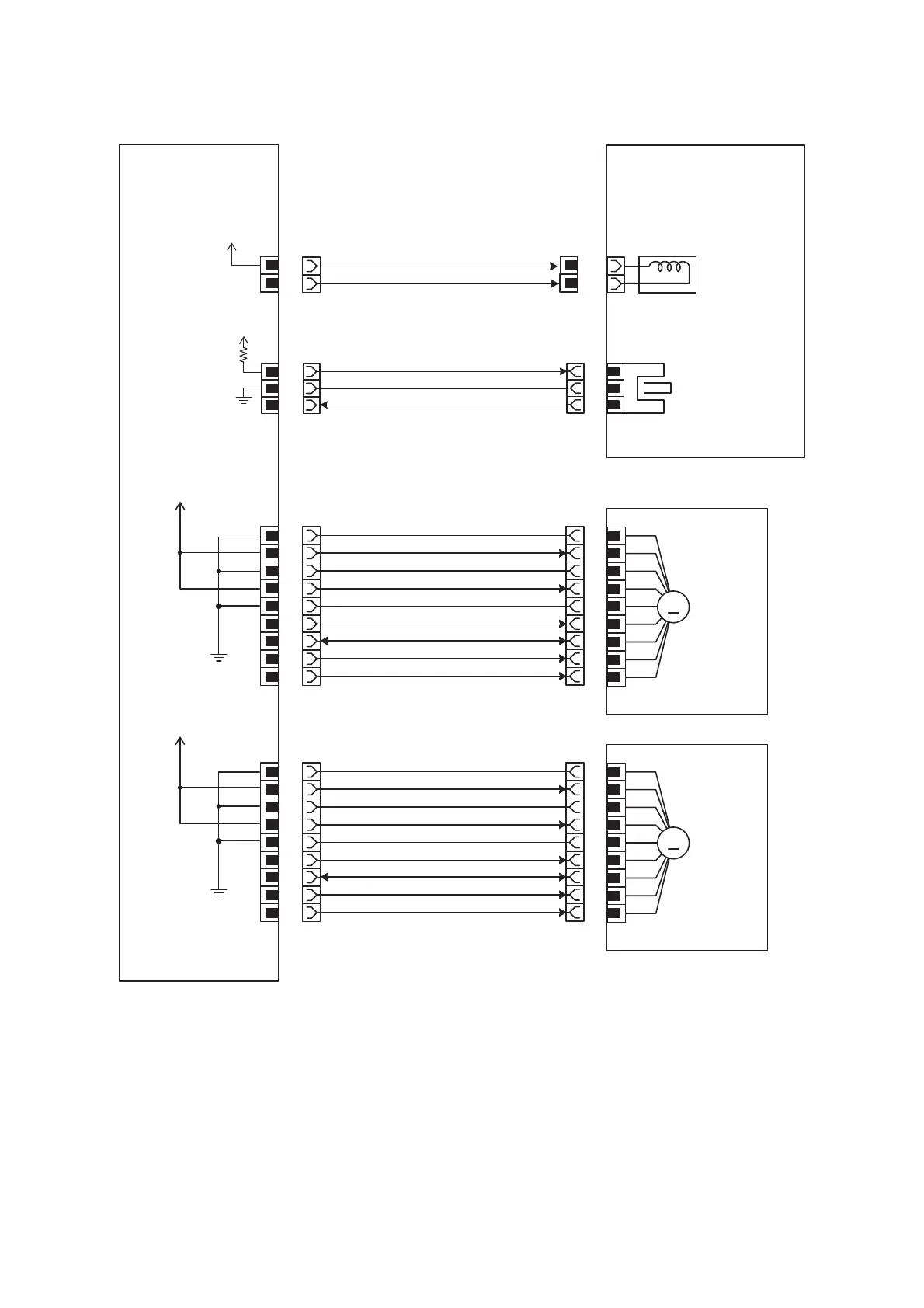

7.5.2.3 DRIVE
SG
PWBA MCU
PL8.3.6
DRIVE ASSY PH
PL7.1.4
DRIVE ASSY MAIN
PL7.1.2
DRIVE ASSY SUB
PL7.1.1
1
2
4
5
6
3
8
9
7
P/J22
P/J24
P/J221
9
8
7
6
5
4
3
2
1
I/L +24VDC
SG
I/L +24VDC
SG
SUB MOTO ON
SUB MOT ALARM
SUB MOT CLK
SUB MOT LOW
M
SG
1
2
4
5
6
3
8
9
7
P/J21
P/J211
9
8
7
6
5
4
3
2
1
I/L +24VDC
SG
I/L +24VDC
SG
MAIN MOT ON
MAIN MOT ALARM
MAIN MOT CLK
MAIN MOT LOW
M
MiA07004KA
INTERLOCK
+24VDC
INTERLOCK
+24VDC
1
2
P/J241
1
2
2
1
HARN ASSY MAIN MOT AIO
PL9.1.7
HARN ASSY KSNR REGCL AIO
PL9.1.9
HARN ASSY KSOL AIO
PL7.1.5
HARN ASSY SUB MOT AIO
PL9.1.8
I/L +24VDC
K MODE SOL ON (L) +24VDC
INTERLOCK
+24VDC
1
2
3
K MODE SENSED (L) +3.3VDC
SG
3
2
1
PULL UP +3.3VDC
P/J261P/J26
+3.3VDC
COLOR MODE
SWITCHING
SOLENOID
COLOR MODE
SWITCHING SENSOR
