Fuji Xerox DocuPrint CM305 df Service Manual

7 - 36
Chapter 7 Wiring Data

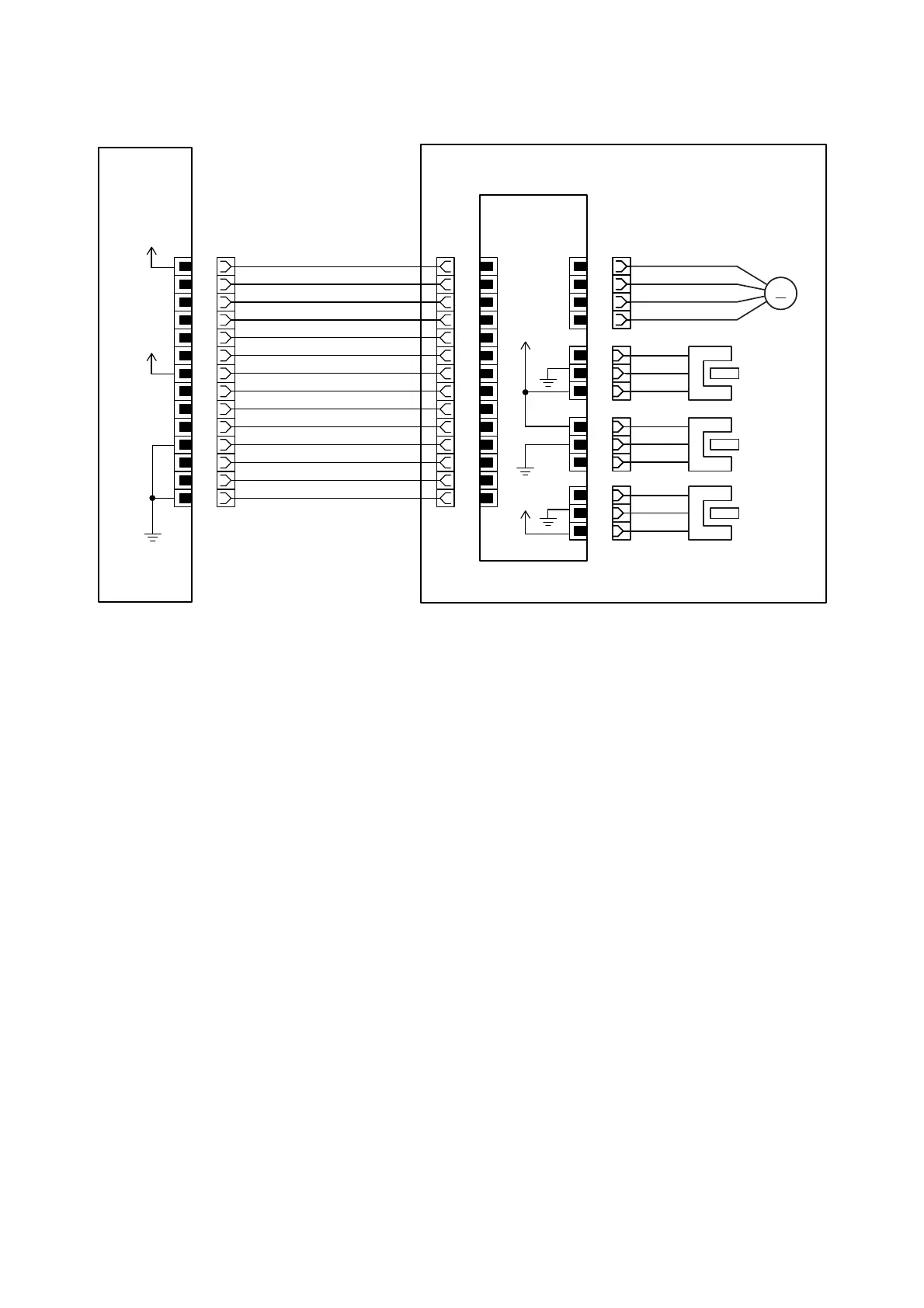

7.5.2.10 SCANNER ASSY (ADF)
PWBA ESS AIO
PL8.1.2
JADF1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
+24V DC
SOL_OUT
xSCAN_A_ADF
SCAN_A_ADF
SCAN_B_ADF
xSCAN_B_ADF
+5V DC
S_ENTRY_N
S_FEED_N
S_COVER_N
SG
S_FEED2_N
S_COVER2_N
SG
ADF ASSY
PL10.1.3
CONNECTOR
PWBA
MiA07014KA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
+24VDC
+5VDC
1
2
3
JDFM1
JCV1
1
2
3
4
ADF MOTOR
ADF
COVER
SENSOR
M
1
2
3
JDES1
ADF
DOCUMENT
SENSOR
1
2
3
JDS1
ADF
FEED
SENSOR
A
/A
B
/B
+3.3VDC
+3.3V
P/J1003
HARN ASSY ADF
PL10.1.2
