Fuji Xerox DocuPrint CM305 df Service Manual

10 – 27
Chapter 10 Machine Overview

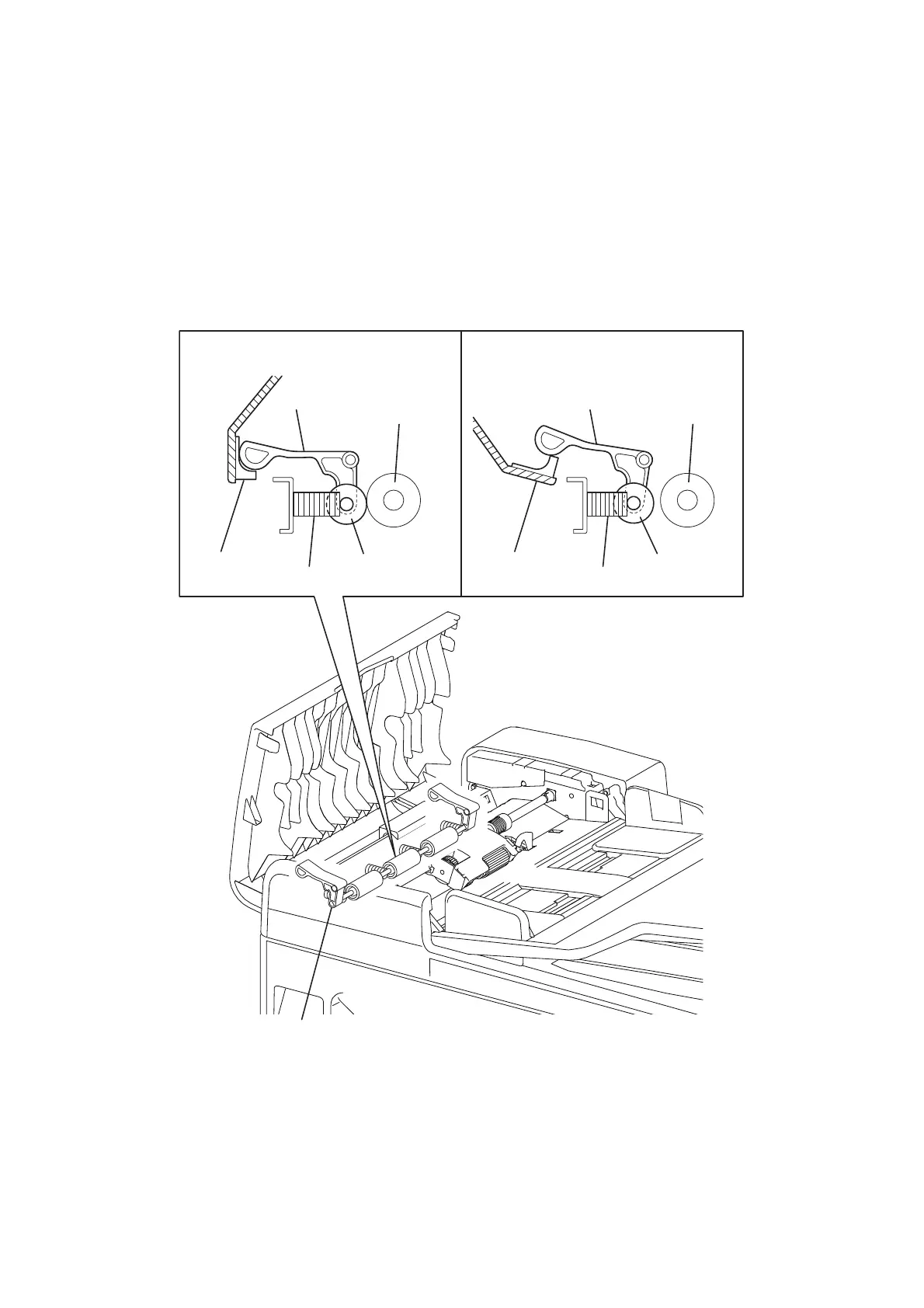

- Pinch Roll Assy
The Pinch Roll Assy is normally pressed against the direction of the Takeaway Roll by the spring
pressure.
Documents are fed through between the Pinch Rolls and the Takeaway Roll to the CVT Window by the
rotation of the Takeaway Roll.
If a jam occurs between the Pinch Roll Assy and the Takeaway Roll, it is hard to retrieve documents
due to the high spring pressure of Pinch Roll Assy.
In order to retrieve jammed documents, open the Cover Assy ADF to release the spring pressure, and
make enough clearance between the Pinch Rolls and the Takeaway Roll.
MiA06008GA
Open Cover Assy ADF
Pinch Roll Assy
Takeaway Roll
Arm
Pinch Roll
Spring
Close Cover Assy ADF
Cover Assy ADF
Takeaway Roll
Arm
Pinch Roll
Spring
Cover Assy ADF
