Operation Manual – Voice VLAN
H3C S3100 Series Ethernet Switches Chapter 1 Voice VLAN Configuration
1-12
To do… Use the command… Remarks
Display the ports operating in the voice VLAN
display vlan vlan-id
1.4 Voice VLAN Configuration Example
1.4.1 Voice VLAN Configuration Example (Automatic Voice VLAN Assignment
Mode)
I. Network requirements
Create a voice VLAN and configure it to operate in automatic voice VLAN assignment
mode to enable the port to which an IP phone is connected to join or exit the voice
VLAN automatically and voice traffic to be transmitted within the voice VLAN.
z Create VLAN 2 and configure it as the voice VLAN, with the aging timer being 100
minutes.
z The IP phone sends tagged packets. It is connected to Ethernet 1/0/1, a hybrid
port, with VLAN 6 being its default VLAN. Set this port to operate in automatic
voice VLAN assignment mode.
z You need to add a user-defined OUI address 0011-2200-000, with the mask being
ffff-ff00-0000 and the description string being “test”.

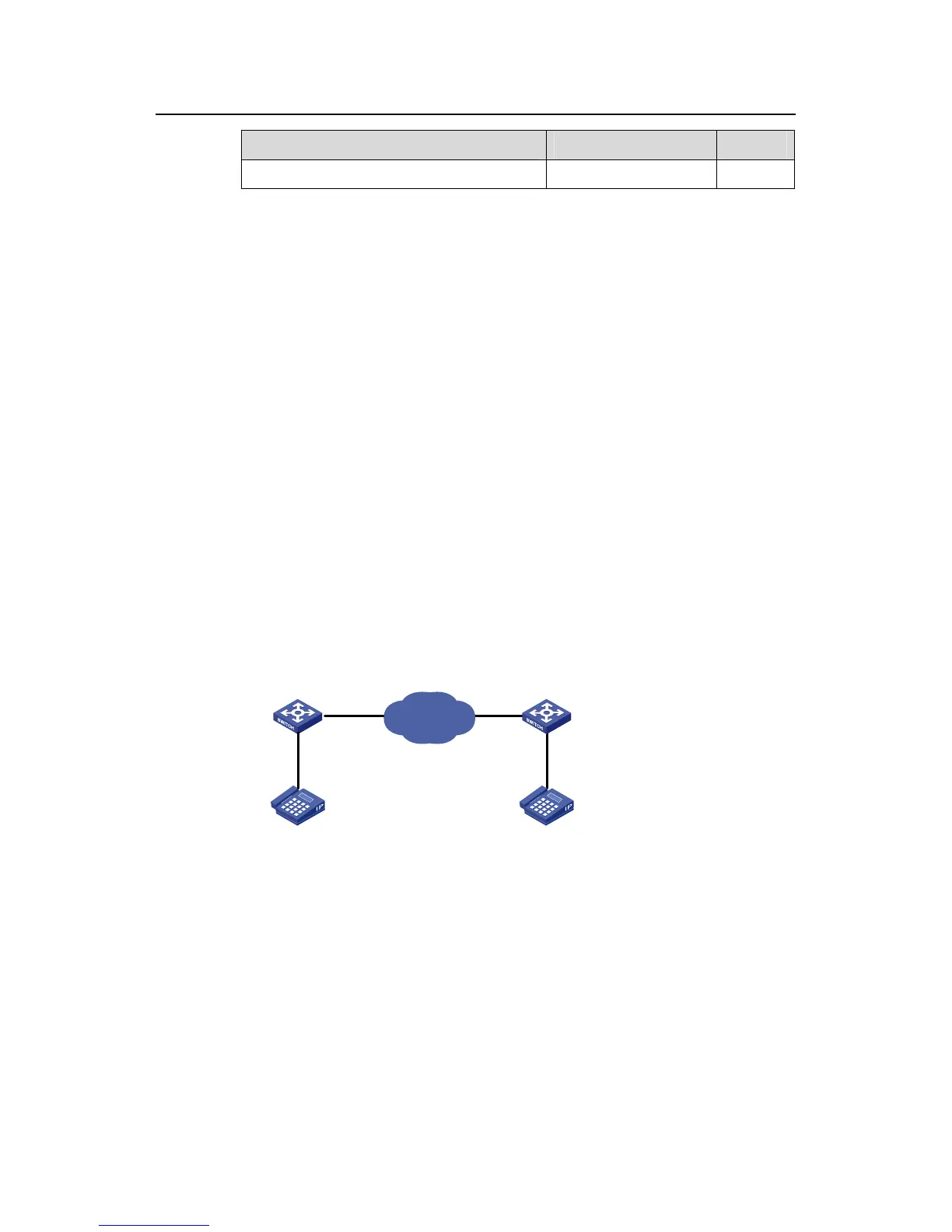

II. Network diagram
Internet
Device A
Eth1/0/1
VLAN2
VLAN2
010-1001
OUI:0011-2200-0000
Mask:ffff-ff00-0000
Device B
Figure 1-2 Network diagram for voice VLAN configuration (automatic voice VLAN
assignment mode)
III. Configuration procedure
# Create VLAN 2 and VLAN 6.
<DeviceA> system-view
[DeviceA] vlan 2
[DeviceA-vlan2] quit
