Operation Manual – SSH
H3C S3100 Series Ethernet Switches Chapter 1 SSH Configuration
1-37

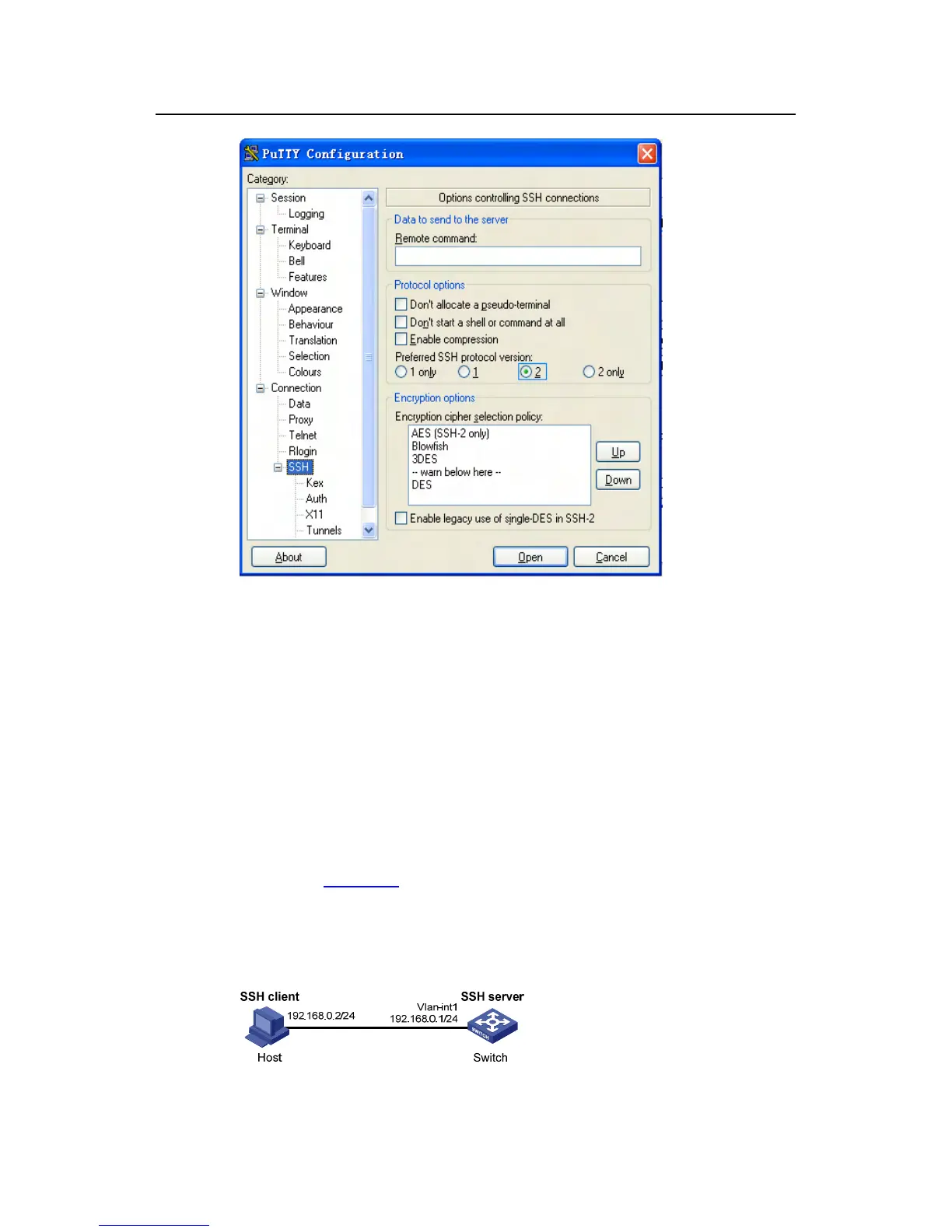

Figure 1-20 SSH client configuration interface (2)
Under Protocol options, select 2 from Preferred SSH protocol version. Then, click
Open. If the connection is normal, you will be prompted to enter the user name
client001 and the password. Once authentication succeeds, you will log in to the server.
The level of commands that you can access after login is authorized by the
HWTACACS server. For authorization configuration of the HWTACACS server, refer to
relevant HWTACACS server configuration manuals.
1.7.4 When Switch Acts as Server for Publickey Authentication
I. Network requirements
As shown in Figure 1-21, establish an SSH connection between the host (SSH client)
and the switch (SSH Server) for secure data exchange. The host runs SSH2.0 client
software. Publickey authentication is required.
II. Network diagram
Figure 1-21 Switch acts as server for publickey authentication
