H3C S3100 8C SI - Mirroring Configuration Example; Local Port Mirroring Configuration Example

Operation Manual – Mirroring
H3C S3100 Series Ethernet Switches Chapter 1 Mirroring Configuration
1-9
1.3 Mirroring Configuration Example
1.3.1 Local Port Mirroring Configuration Example
I. Network requirements
The departments of a company connect to each other through S3100 Ethernet
switches:
z Research and Development (R&D) department is connected to Switch C through
Ethernet 1/0/1.
z Marketing department is connected to Switch C through Ethernet 1/0/2.
z Data detection device is connected to Switch C through Ethernet 1/0/3
The administrator wants to monitor the packets received on and sent from the R&D
department and the marketing department through the data detection device.
Use the local port mirroring function to meet the requirement. Perform the following
configurations on Switch C.
z Configure Ethernet 1/0/1 and Ethernet 1/0/2 as mirroring source ports.
z Configure Ethernet 1/0/3 as the mirroring destination port.
II. Network diagram
Switch C
The R&D
department
Switch A
Switch B
Eth1/0/2
Eth1/0/1
Eth1/0/3
The Marketing
department
Data detection device

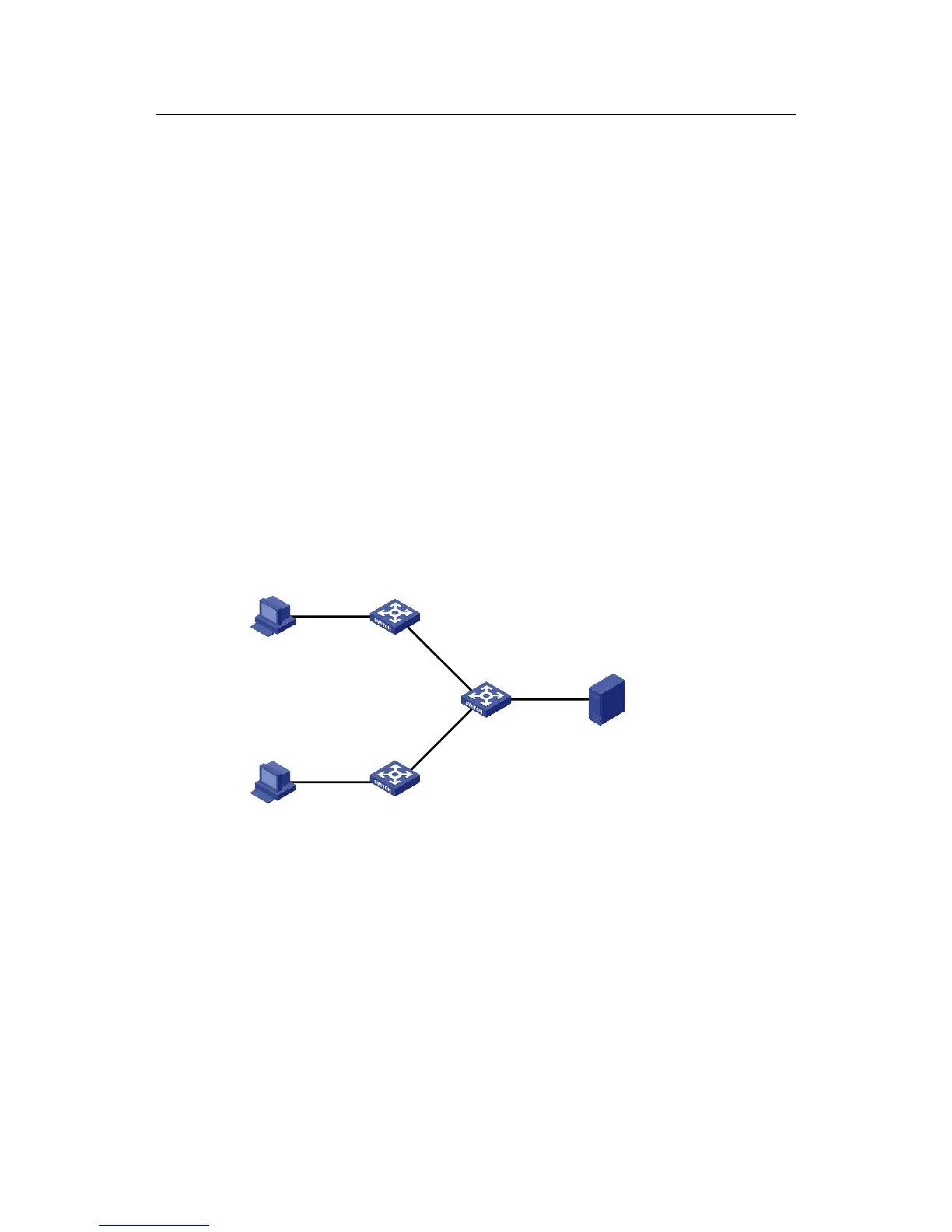

Figure 1-3 Network diagram for local port mirroring
III. Configuration procedure
Configure Switch C:
# Create a local mirroring group.
<Sysname> system-view
[Sysname] mirroring-group 1 local
# Configure the source ports and destination port for the local mirroring group.
[Sysname] mirroring-group 1 mirroring-port Ethernet 1/0/1 Ethernet 1/0/2 both
