Operation Manual – SSH
H3C S3100 Series Ethernet Switches Chapter 1 SSH Configuration
1-44

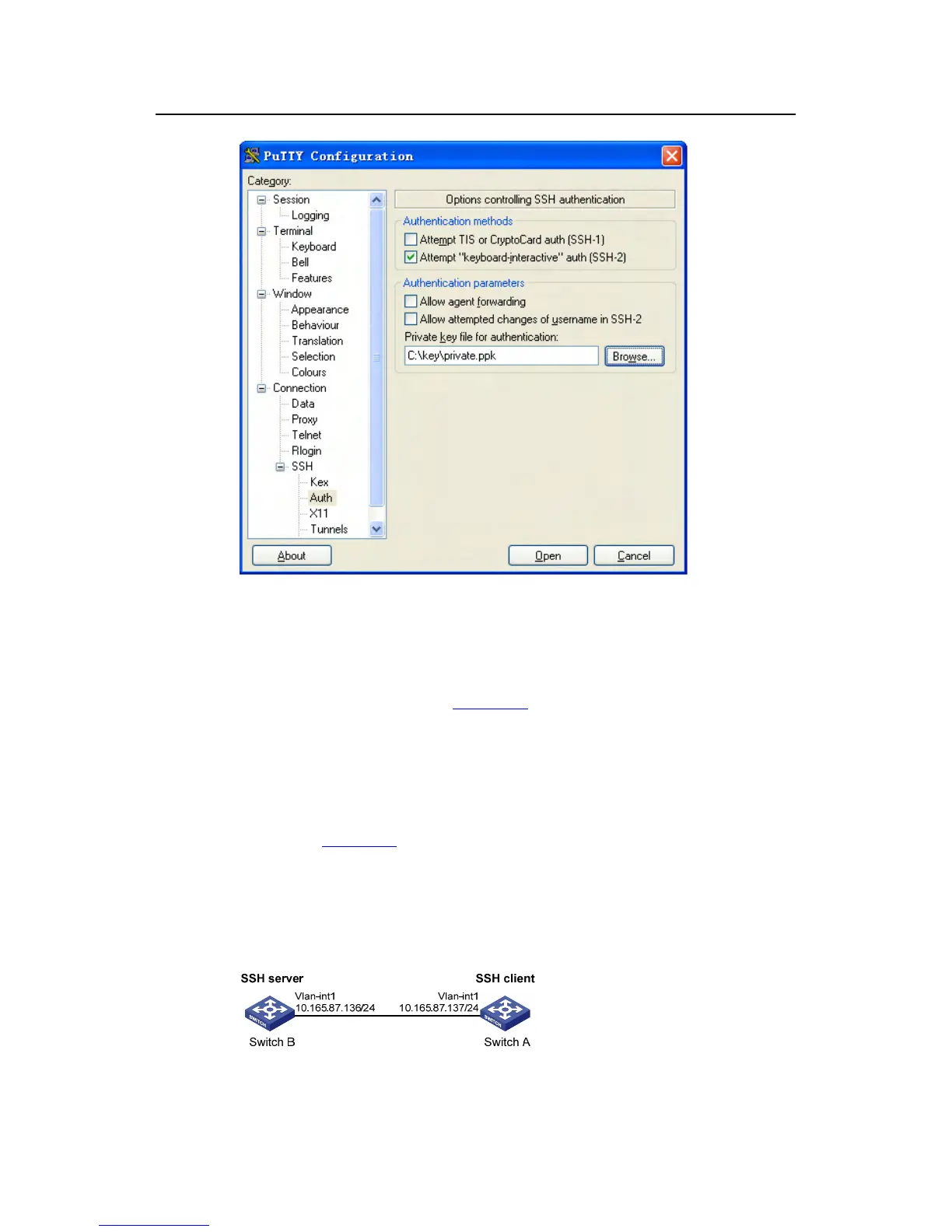

Figure 1-28 SSH client configuration interface (2)
Click Browse… to bring up the file selection window, navigate to the private key file and
click OK.
5) From the window shown in
Figure 1-28, click Open. If the connection is normal,
you will be prompted to enter the username.
1.7.5 When Switch Acts as Client for Password Authentication
I. Network requirements
As shown in Figure 1-29, establish an SSH connection between Switch A (SSH Client)
and Switch B (SSH Server) for secure data exchange. The user name for login is
client001 and the SSH server’s IP address is 10.165.87.136. Password authentication
is required.
II. Network diagram
Figure 1-29 Switch acts as client for password authentication
