Operation Manual – SSH
H3C S3100 Series Ethernet Switches Chapter 1 SSH Configuration
1-29

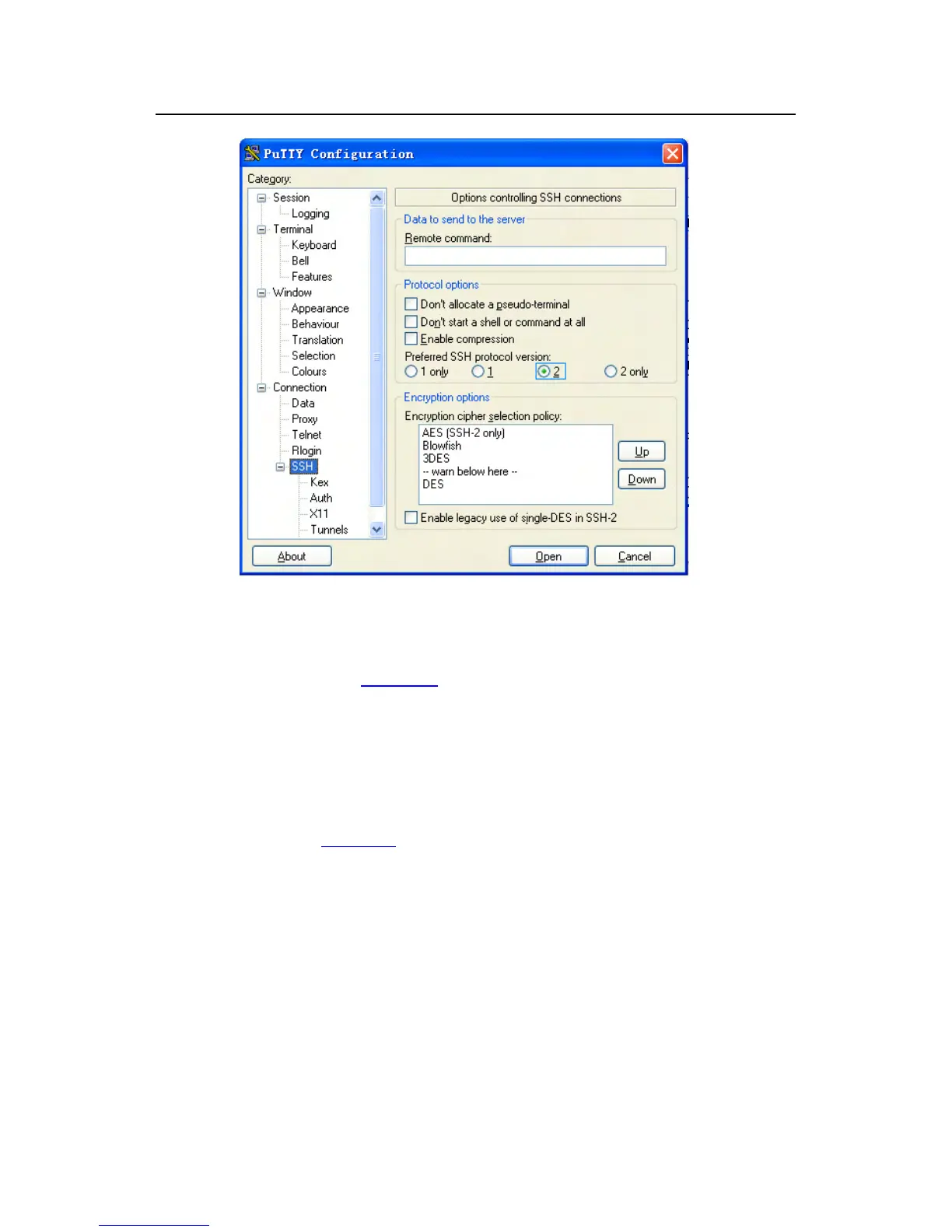

Figure 1-12 SSH client configuration interface 2
Under Protocol options, select 2 from Preferred SSH protocol version.
3) As shown in
Figure 1-12, click Open. If the connection is normal, you will be
prompted to enter the user name client001 and password abc. Once
authentication succeeds, you will log in to the server.
1.7.2 When Switch Acts as Server for Password and RADIUS Authentication
I. Network requirements
As shown in Figure 1-13, an SSH connection is required between the host (SSH client)
and the switch (SSH server) for secure data exchange. Password authentication is
required.
z The host runs SSH2.0 client software to establish a local connection with the
switch.
z The switch cooperates with a RADIUS server to authenticate SSH users.
