Operation Manual – SNMP-RMON
H3C S3100 Series Ethernet Switches Chapter 2 RMON Configuration
2-5
Table 2-2 Display RMON
Operation Command Description
Display RMON statistics
display rmon statistics
[ interface-type interface-number | unit
unit-number ]
Display RMON history
information
display rmon history [ interface-type
interface-number | unit unit-number ]
Display RMON alarm
information
display rmon alarm [ entry-number ]
Display extended RMON
alarm information
display rmon prialarm
[ prialarm-entry-number ]
Display RMON events display rmon event [ event-entry ]
Display RMON event logs display rmon eventlog [ event-entry ]
Available in
any view.
2.4 RMON Configuration Examples
I. Network requirements
z The switch to be tested is connected to a remote NMS through the Internet.
Ensure that the SNMP agents are correctly configured before performing RMON
configuration.
z Create an entry in the extended alarm table to monitor the information of statistics
on the Ethernet port, if the change rate of which exceeds the set threshold, the
alarm events will be triggered.
II. Network diagram

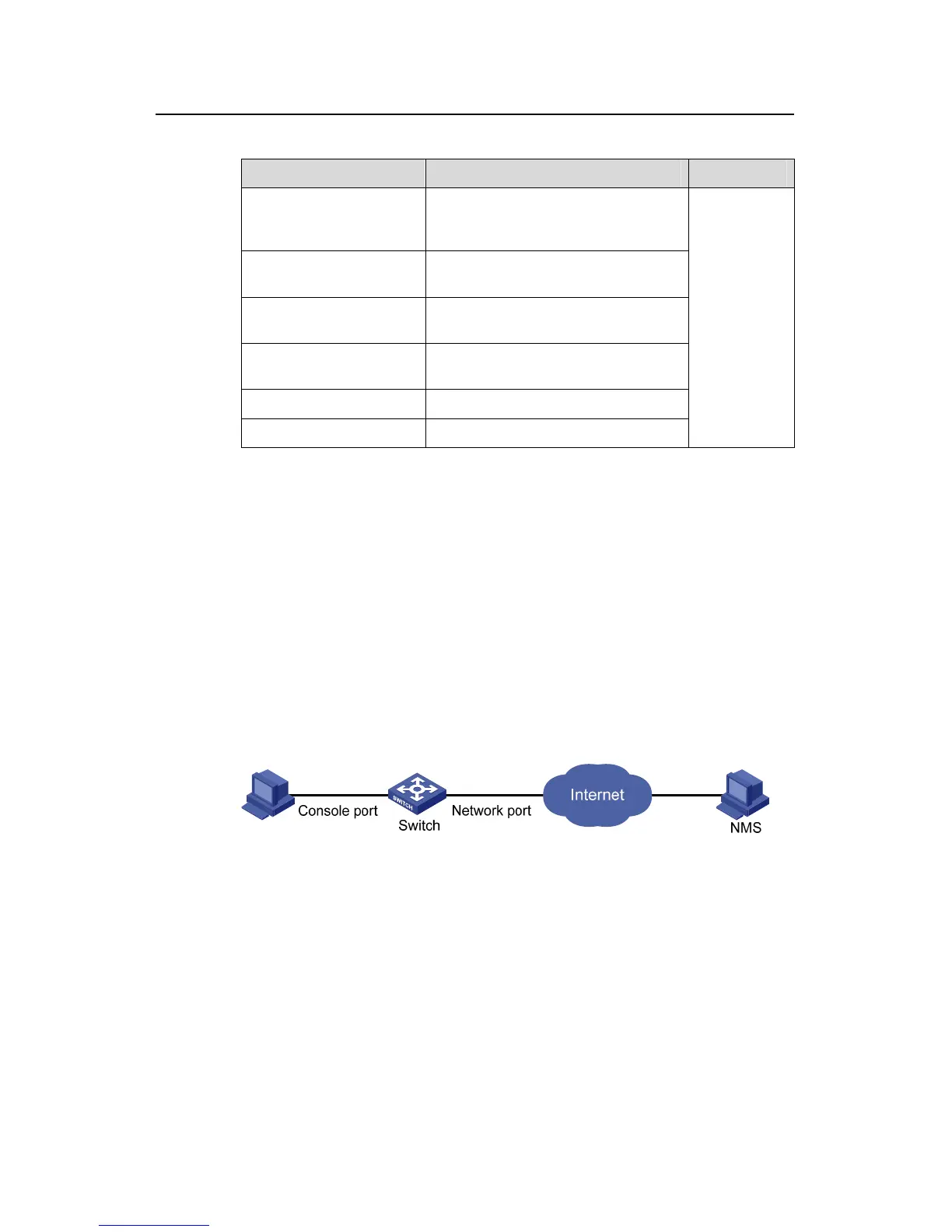

Figure 2-1 Network diagram for RMON configuration
III. Configuration procedures
# Add the statistics entry numbered 1 to take statistics on Ethernet 1/0/1.
<Sysname> system-view
[Sysname] interface Ethernet 1/0/1
[Sysname-Ethernet1/0/1] rmon statistics 1
[Sysname-Ethernet1/0/1] quit
# Add the event entries numbered 1 and 2 to the event table, which will be triggered by
the following extended alarm.
