Operation Manual – QoS-QoS Profile
H3C S3100 Series Ethernet Switches Chapter 2 QoS Profile Configuration
2-5
2.3 Configuration Example
2.3.1 QoS Profile Configuration Example
I. Network requirements
All departments of a company are interconnected through a switch. The 802.1x
protocol is used to authenticate users and control their access to network resources. A
user name is someone, and the authentication password is hello. It is connected to
Ethernet 1/0/1 of the switch and belongs to the test.net domain.
It is required to configure a QoS profile to limit the rate of all the outbound IP packets of
the user to 128 kbps and configuring to drop the packets exceeding the target packet
rate.
II. Network diagram
User
Switch
Network
AAA Server
Eth1/0/1

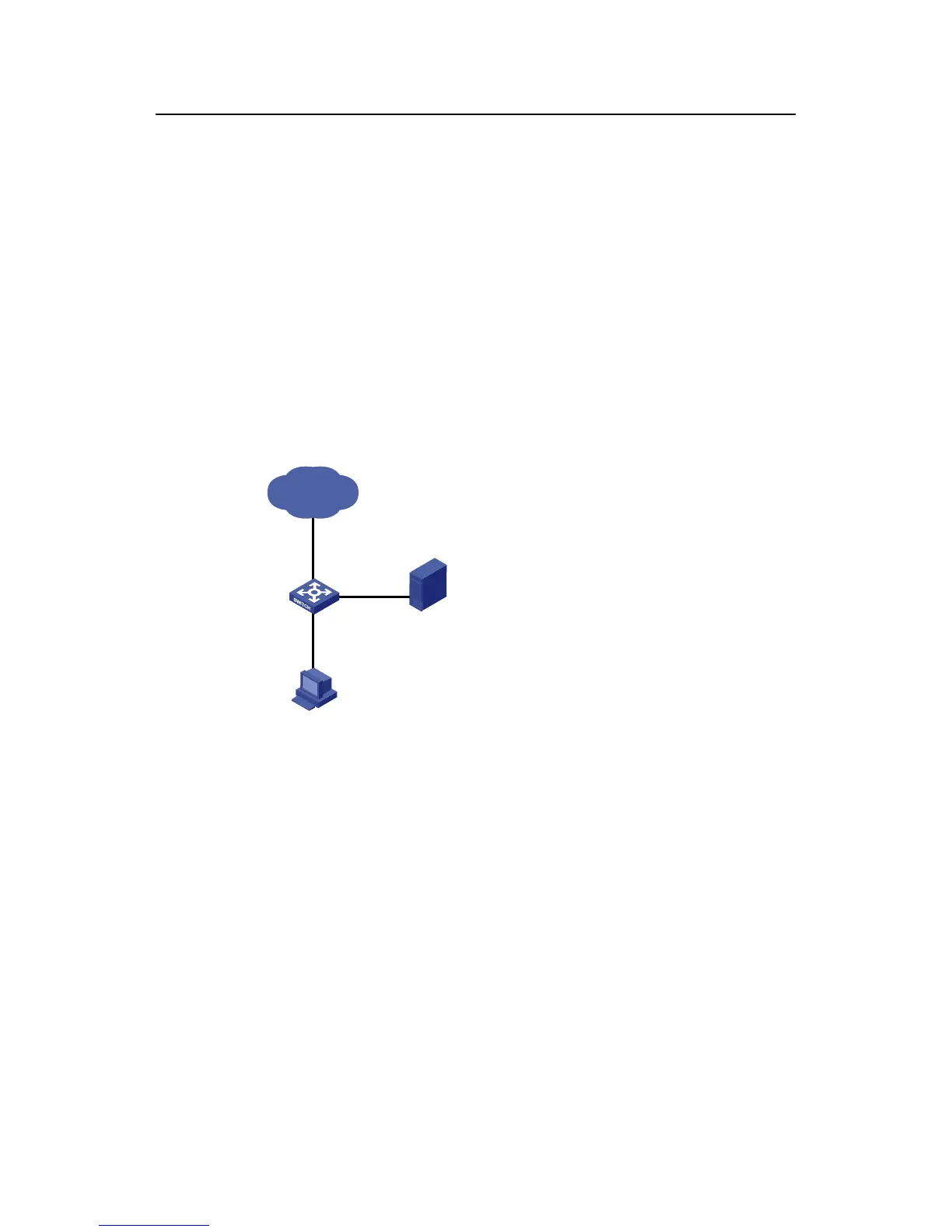

Figure 2-1 Network diagram for QoS profile configuration
III. Configuration procedure
1) Configuration on the AAA server
# Configure the user authentication information and the matching relationship between
the user name and the QoS profile. Refer to the user manual of the AAA server for
detailed configuration.
2) Configuration on the switch
# Configure IP addresses for the RADIUS server.
<Sysname> system-view
[Sysname] radius scheme radius1
[Sysname-radius-radius1] primary authentication 10.11.1.1
[Sysname-radius-radius1] primary accounting 10.11.1.2
[Sysname-radius-radius1] secondary authentication 10.11.1.2
