Operation Manual – MSTP
H3C S3100 Series Ethernet Switches Chapter 1 MSTP Configuration
1-6

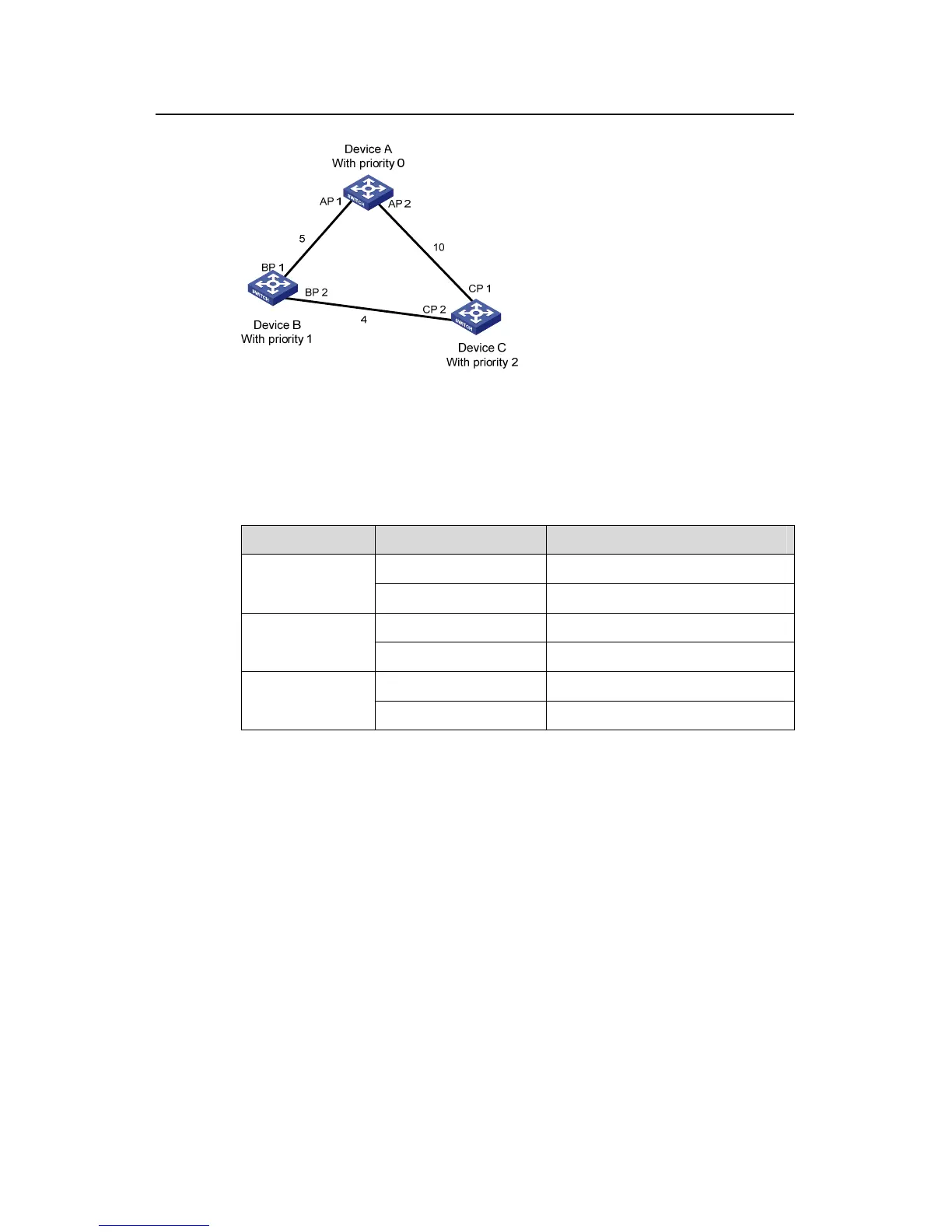

Figure 1-2 Network diagram for STP algorithm
z Initial state of each device
The following table shows the initial state of each device.
Table 1-4 Initial state of each device
Device Port name BPDU of port
AP1 {0, 0, 0, AP1}
Device A
AP2 {0, 0, 0, AP2}
BP1 {1, 0, 1, BP1}
Device B
BP2 {1, 0, 1, BP2}
CP1 {2, 0, 2, CP1}
Device C
CP2 {2, 0, 2, CP2}
z Comparison process and result on each device
The following table shows the comparison process and result on each device.
